Phase plane analysis provides a quick derivation of the energy integral lemma of Section 4.8 (page 201). By completing the following steps, prove that solutions of equations of the special form \({\bf{y'' = f(y)}}\) satisfy\(\frac{{\bf{1}}}{{\bf{2}}}{{\bf{(y')}}^{\bf{2}}}{\bf{ - F(y) = constant}}\)

where F(y) is an antiderivative of f(y).

  1. Set v = y’ and write \({\bf{y'' = f(y)}}\) as an equivalent first-order system.
  2. Show that the solutions to the vy-phase plane equation for the system in part.
  3. Satisfy\(\frac{{{{\bf{v}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ = F(y) + K}}\). Replacing v by y’ then completes the proof.

Short Answer

Expert verified
  1. Yes,\(y'' = f\left( y \right)\) as an equivalent first-order system.
  2. \(\frac{{{{\bf{v}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ = F(y) + K}}\)is the solution to the vy-phase plane equation for the system in part.
  3. The verifying solution is \(\frac{{{\bf{y'(t}}{{\bf{)}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ - F(y) = constant}}\)

Step by step solution

01

Mention given

Suppose that y(t) solves \({\bf{y''(t) = f(y)}}\) where f is a continuous function independent of y’

Or t. Suppose that F(y) is an indefinite integral of f(y) and \({\bf{f(y) = }}\frac{{\bf{d}}}{{{\bf{dy}}}}{\bf{(F(y)}}\)then\(\frac{{\bf{1}}}{{\bf{2}}}{{\bf{(y')}}^{\bf{2}}}{\bf{ - F(y) = constant}}\).

(a)

02

Find the first-order system

Let,

\(\begin{array}{c}{\bf{v = y'}}\\{\bf{v' = y''}}{\bf{.y'' = f(y)}}\end{array}\)

Then the system is:

\(\begin{array}{c}\frac{{{\bf{dy}}}}{{{\bf{dt}}}}{\bf{ = v}}\\\frac{{{\bf{dv}}}}{{{\bf{dt}}}}{\bf{ = f(y)}}\end{array}\)

Yes,\(y'' = f\left( y \right)\) as an equivalent first-order system.

(b)

03

Show solution in vy plane.

Here,

\(\begin{array}{c}\frac{{{\bf{dv}}}}{{{\bf{dy}}}}{\bf{ = }}\frac{{{\bf{f(y)}}}}{{\bf{v}}}\\\int {{\bf{vdv}}} {\bf{ = }}\int {{\bf{f(y)dy}}} \\\frac{{{{\bf{v}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ = F(y) + K}}\end{array}\)

Hence, \(\frac{{{{\bf{v}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ = F(y) + K}}\)the solutions to the vy-phase plane equation for the system are in part.

04

Satisfy\(\frac{{{{\bf{v}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ = F(y) + K}}\). Replacing v by y’ then completes the proof.

Now put \({\bf{v = y'}}\)then;

\(\frac{{{\bf{y'(t}}{{\bf{)}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ - F(y) = constant}}\)

Therefore, the verifying solution is \(\frac{{{\bf{y'(t}}{{\bf{)}}^{\bf{2}}}}}{{\bf{2}}}{\bf{ - F(y) = constant}}\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Find all the critical points of the system

dxdt=x2-1dydt=xy

and the solution curves for the related phase plane differential equation. Thereby proving that two trajectories lie on semicircles. What are the endpoints of the semicircles?

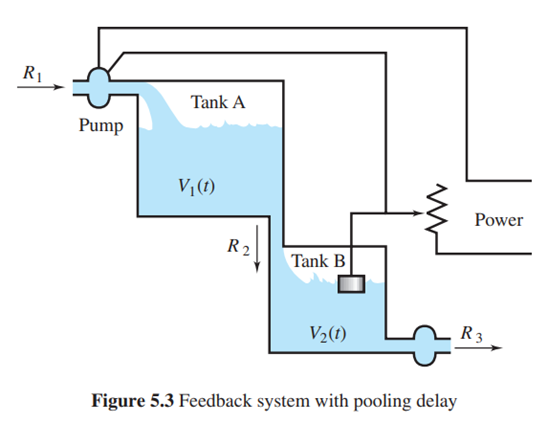

Feedback System with Pooling Delay. Many physical and biological systems involve time delays. A pure time delay has its output the same as its input but shifted in time. A more common type of delay is pooling delay. An example of such a feedback system is shown in Figure 5.3 on page 251. Here the level of fluid in tank B determines the rate at which fluid enters tank A. Suppose this rate is given byR1t=αV-V2t whereα and V are positive constants andV2t is the volume of fluid in tank B at time t.
