In Problems 15鈥�18, find all critical points for the given system. Then use a software package to sketch the direction field in the phase plane and from this description the stability of the critical points (i.e., compare with Figure 5.12).

Short Answer

Expert verified

This is unstable saddle point is (-2,1).

Step by step solution

01

Find critical points

Here the system is;

dxdt=2x+y+3dydt=-3x-2y-4

For critical points equate the system equal to zero.

2x+y+3=0-3x-2y-4=0

Solve for x and y by eliminating the method.

The values of x=-2 and y=1.

So, this is the unstable saddle point is (-2,1).

02

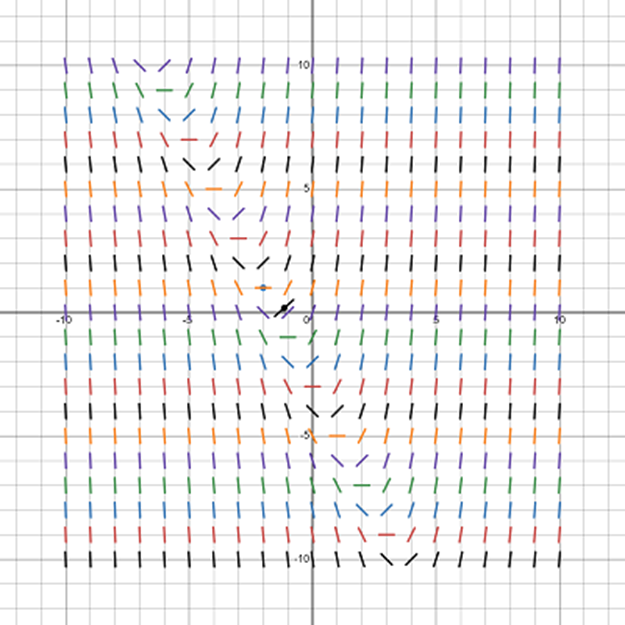

Sketch

This is the required result.
