Chapter 5: Q10E (page 259)

In Problems 10鈥�13, use the vectorized Euler method with = 0.25 to find an approximation for the solution to the given initial value problem on the specified interval.

y''+ty'+y=0;y(0)=1,y'(0)=0on[0,1]

Short Answer

Expert verified

y(0.25)=1y(0.5)=0.9375y(0.75)=0.8164y(1)=0.651855

Step by step solution

01

Transform equation

Here h=0.25 0n [0,1]

The equations can be written as;

x1(t)=y(t)x2(t)=x'(t)

The transformation of the equation is;

x'1(t)=x2(t)x'2(t)=-x1-tx2

The initial conditions are;

x1(0)=y1(0)=1=x1,0x2(0)=y'(0)=0=x2,0

02

Apply Euler’s method.

Now,

xn+1=xn+hf(tn,xn)

tn+1=tn+h=0+0.25x1(0.25)=x1,1=1x2(0.25)=x2,1=-0.25

And

tn+1=tn+ht2=0.25+0.25x1(0.5)=x1,2=0.9375x2(0.5)=x2,2=-0.484375

t3=0.5+0.25=0.75x1(0.75)=x1,3=0.816406x2(0.75)=x2,3=-0.658203

t4=0.75+0.25=1x1(1)=x1,4=0.651855x2(1)=x2,4=-0.738891

This is the required result.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

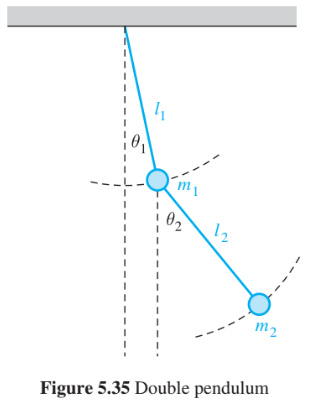

A double pendulum swinging in a vertical plane under the influence of gravity (see Figure5.35) satisfies the system
