Data are given on the number of defective coins in 10 samples.

The sample size of each of the 10 samples is equal to 100.

Let\(\bar p\)be the estimated proportion of defective coins in all the samples.

It is computed as follows:

\(\begin{array}{c}\bar p = \frac{{{\rm{Total}}\;{\rm{number}}\;{\rm{of}}\;{\rm{defectives}}\;{\rm{from}}\;{\rm{all}}\;{\rm{samples}}\;{\rm{combined}}}}{{{\rm{Total}}\;{\rm{number}}\;{\rm{of}}\;{\rm{samples}}}}\\ = \frac{{32 + 21 + 25 + ..... + 33}}{{10\left( {100} \right)}}\\ = \frac{{282}}{{1000}}\\ = 0.282\end{array}\)

The value of\(\bar q\)is computed as shown:

\(\begin{array}{c}\bar q = 1 - 0.282\\ = 0.718\end{array}\)

The value of the lower control limit (LCL) is computed below:

\(\begin{array}{c}LCL = \bar p - 3\sqrt {\frac{{\bar p\bar q}}{n}} \\ = 0.282 - 3\sqrt {\frac{{\left( {0.282} \right)\left( {0.718} \right)}}{{100}}} \\ = 0.147008\end{array}\)

The value of the upper control limit (UCL) is computed below:

\(\begin{array}{c}UCL = \bar p + 3\sqrt {\frac{{\bar p\bar q}}{n}} \\ = 0.282 + 3\sqrt {\frac{{\left( {0.282} \right)\left( {0.718} \right)}}{{100}}} \\ = 0.416992\end{array}\)

The sample fraction defective for the ith batch can be computed as:

\({p_i} = \frac{{{d_i}}}{{100}}\)

Where,

\({p_i}\)be the sample fraction defective for the ith batch;

\({d_i}\)be the number of defective orders in the ith batch.

The computation of fraction defective for the ith batch is given as follows:

Follow the given steps to construct the p chart:

• Mark the values 1, 2, ..., 10 on the horizontal axis and label the axis as 鈥淪ample.鈥�
• Mark the values 0, 0.05, 0.1, 鈥︹��, 0.45 on the vertical axis and label the axis as 鈥淧roportion.鈥�
• Plot a straight line corresponding to the value 鈥�0.282鈥� on the vertical axis and label the line (on the left side) as 鈥淺(CL = 0.282\).鈥�
• Plot a horizontal line corresponding to the value 鈥�0. 147008鈥� on the vertical axis and label the line as 鈥淟CL=0.147008鈥�.
• Similarly, plot a horizontal line corresponding to the value 鈥�0.416992鈥� on the vertical axis and label the line as 鈥淯CL=0.416992.鈥�
• Mark the given 10 sample points (fraction defective of the ith batch) on the graph and join the dots using straight lines.

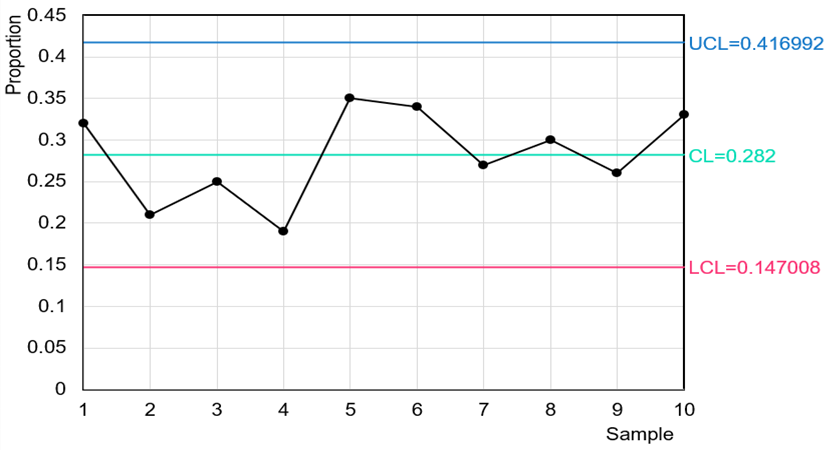

The following p chart is plotted:

None of the three out-of-control criteria is depicted in the plotted p chart.

Thus, it can be concluded that the process is within statistical control.

Referring to Exercise 5, the p chart corresponding to each sample size is equal to 10,000. In this exercise, the p chart with a sample size equal to 100 is approximately identical to the referred Exercise 5.

Since the two p charts have similar outlooks, it can be said that the quality of the manufacturing process for the two processes is also the same.

Moreover, the process dishes out good and reliable products (whether the sample size is 100 or 10,000), and the manufacturer should continue with the ongoing procedure.
