(a) Audible wavelengths. The range of audible frequencies is from about\(20 Hz to 20,000 Hz\) . What is the range of the wavelengths of audible sound in air? (b) Visible light. The range of visible light extends from\(380 nm to 750 nm\) . What is the range of visible frequencies of light? (c) Brain surgery. Surgeons can remove brain tumors by using a cavitron ultrasonic surgical aspirator, which produces sound waves of frequency\(23 kHz\). What is the wavelength of these waves in air? (d) Sound in the body. What would be the wavelength of the sound in part (c) in bodily fluids in which the speed of sound is \(1480 {m \mathord{\left/

{\vphantom {m s}} \right.

\\s}\)but the frequency is unchanged?

Short Answer

Expert verified

(a) \(1.7\,cm\,\,to\,\,17\,m\)

Step by step solution

01

Given Data

Range of frequency \(20 Hz to 20,000 Hz\)

02

Concept/ Formula used

For humans, the audible frequency range is around 20 Hz to 20,000 Hz (20 kHz). It's customary to divide this range into at least three categories for descriptive purposes: lows, mids, and highs.

Formula:

\(\lambda = \frac{v}{f}\)

Where, \(v\) is velocity and \(f\)is frequency of sound

03

Calculation for wavelength

(a)

\(v = 344\,{m \mathord{\left/

{\vphantom {m s}} \right.

\\s}\)

For \(f = 20,000\,Hz\)

\(\begin{aligned}{c}\lambda = \frac{v}{f}\\ = \frac{{344\,{m \mathord{\left/

{\vphantom {m s}} \right.

\\s}}}{{20,000\,Hz}}\\ = 1.7\,cm\end{aligned}\)

For \(f = 20\,Hz\)

\(\begin{aligned}{c}\lambda = \frac{v}{f}\\ = \frac{{344\,{m \mathord{\left/

{\vphantom {m s}} \right.

\\s}}}{{20Hz}}\\ = 17\,m\end{aligned}\)

The range of wavelengths is\(1.7\,cm\,\,to\,\,17\,m\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A swimming duck paddles the water with its feet once every 1.6 s, producing surface waves with this period. The duck is moving at constant speed in a pond where the speed of surface waves is 0.32 m/s, and the crests of the waves ahead of the duck are spaced 0.12 m apart. (a) What is the duck鈥檚 speed? (b) How far apart are the crests behind the duck?

The sound source of a ship鈥檚 sonar system operates at a frequency of 18.0 kHz. The speed of sound in water (assumed to be at a uniform 20掳C) is 1482 m>s. (a) What is the wavelength of the waves emitted by the source? (b) What is the difference in frequency between the directly radiated waves and the waves reflected from a whale traveling directly toward the ship at 4.95 m/s? The ship is at rest in the water.

With what tension must a rope with length 2.50 m and mass 0.120 kg be stretched for transverse waves of frequency 40.0 Hz to have a wavelength of 0.750 m?

The speed of ocean waves depends on the depth of the water; the deeper the water, the faster the wave travels. Use this to explain why ocean waves crest and 鈥渂reak鈥 as they near the shore.

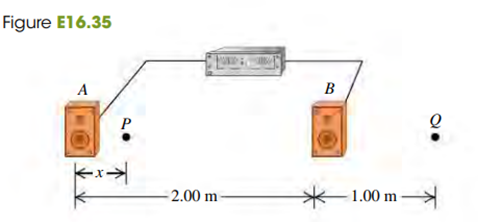

Two loudspeakers, A and B (Fig. E16.35), are driven by the same amplifier and emit sinusoidal waves in phase. Speaker B is 2.00 m to the right of speaker A. Consider point Q along the extension of the line connecting the speakers, 1.00 m to the right of speaker B. Both speakers emit sound waves that travel directly from the speaker to point Q. What is the lowest frequency for which (a) constructive interference occurs at point Q; (b) destructive interference occurs at point Q?
