Chapter 2: Q38E (page 540)

Two loudspeakers, Aand B, are driven by the same amplifier and emit sinusoidal waves in phase. The frequency of the waves emitted by each speaker is 172鈥�Hz. You are 8.00鈥嬧赌�mfrom role="math" localid="1655809995061" A. What is the closest you can be to Band be at a point of destructive interference?

Short Answer

Expert verified

The closet distance from B is 1m.

Step by step solution

01

Given Data

Frequency of sound emitted: f=172鈥塇锄

The distance of observer from A:l=8鈥尘

02

Condition of destructive interference

Condition of destructive interference is 螖濒=n2位 , (n=1,3,5,7,9,...)where螖濒 is the path difference and位 is the wavelength of the sound emitted from the speakers.

03

Use the condition

Given thatf=172鈥塇锄 and we know that the speed of sound in air isv=344鈥尘/s .

So,

位=vf=344鈥尘/s172鈥塇锄=2鈥尘

The two speakers are 8mapart. Let the distance from B is x. So, we can write 螖l=8鈭�x.

Now,

8鈭�x=n2位8鈭�x=n2脳28鈭�x=nx=8鈭�n

From the given values of n, for n=7, we get the closest distance.

Hence, the closest distance from B is 1m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

If you are riding in a supersonic aircraft, what do you hear? Explain. In particular, do you hear a continuous sonic boom? Why or why not?

The four strings on a violin have different thicknesses but are all under approximately the same tension. Do waves travel faster on the thick strings or the thin strings? Why? How does the fundamental vibration frequency compare for the thick versus the thin strings?

15.4. BIO Ultrasound Imaging. Sound having frequencies above the range of human hearing (about 20,000 Hz) is called ultrasound. Waves above this frequency can be used to penetrate the body and to produce images by reflecting from surfaces. In a typical ultrasound scan, the waves travel through body tissue with a speed of 1500 m/s . For a good, detailed image, the wavelength should be no more than 1.0 mm. What frequency sound is required for a good scan?

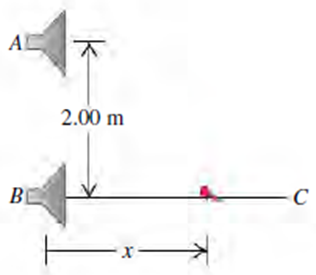

Two identical loudspeakers are located at points A and B, 2.00 m apart. The loudspeakers are driven by the same amplifier and produce sound waves with a frequency of 784 Hz. Take the speed of sound in air to be 344 m/s. A small microphone is moved out from point Balong a line perpendicular to the line connecting Aand B(line BC in Fig. P16.65). (a) At what distances from Bwill there be destructiveinterference? (b) At what distances from Bwill there be constructiveinterference? (c) If the frequency is made low enough, there will be no positions along the line BCat which destructive interference occurs. How low must the frequency be for this to be the case?
