Chapter 2: Q28E (page 539)

The Vocal Tract. Many opera singers (and some pop singers) have a range of about21/2 octaves or even greater. Suppose a soprano鈥檚 range extends from A below middle C (frequency 220 Hz) up to E-flat above high C (frequency 1244 Hz). Although the vocal tract is quite complicated, we can model it as a resonating air column, like an organ pipe, that is open at the top and closed at the bottom. The column extends from the mouth down to the diaphragm in the chest cavity, and we can also assume that the lowest note is the fundamental. How long is this column of air if v = 354 m/s? Does your result seem reasonable, on the basis of observations of your own body?

Short Answer

Expert verified

The length of the air column in the vocal tract is 0.39 m.

Step by step solution

01

STEP 1 Concept of the frequency of standing wave in a stopped pipe

A pipe which has a closed end is given by

f=nv4L

where,f is the frequency of nth harmonic, v is the velocity of the wave, nrepresents the number ofharmonic (n 鈥� 1, 3, 5, ...), L is the length of the pipe.

02

Calculate the length of the column

The frequency of thenth harmonic is given by the formula-

f=nv4LL=nv4f=1脳344m/s4脳220Hz=0.39m

Therefore, the length of the column is 0.39 m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The upper end of a 3.80mlong steel wire is fastened to the ceiling, and a 54.0kg object is suspended from the lower end of the wire. You observe that it takes a transverse pulse 0.0492s to travel from the bottom to the top of the wire. What is the mass of the wire?

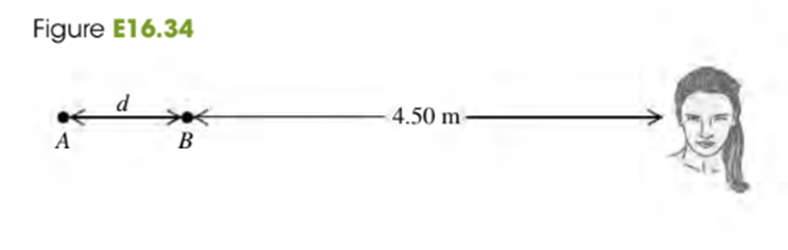

Small speakers A and B are driven in phase at 725 Hz by the same audio oscillator. Both speakers start out 4.50 m from the listener, but speaker A is slowly moved away (Fig. E16.34). (a) At what distance d will the sound from the speakers first produce destructive interference at the listener鈥檚 location? (b) If A is moved even farther away than in part (a), at what distance d will the speakers next produce destructive interference at the listener鈥檚

15.4. BIO Ultrasound Imaging. Sound having frequencies above the range of human hearing (about 20,000 Hz) is called ultrasound. Waves above this frequency can be used to penetrate the body and to produce images by reflecting from surfaces. In a typical ultrasound scan, the waves travel through body tissue with a speed of 1500 m/s . For a good, detailed image, the wavelength should be no more than 1.0 mm. What frequency sound is required for a good scan?

In most modern wind instruments the pitch is changed by

using keys or valves to change the length of the vibrating air column.

The bugle, however, has no valves or keys, yet it can play many notes. How might this be possible? Are there restrictions on what notes a bugle can play?

A loud factory machine produces sound having a displacement amplitude of 1.00 渭-m, but the frequency of this sound can be adjusted. In order to prevent ear damage to the workers, the maxi mum pressure amplitude of the sound waves is limited to 10.0 Pa. Under the conditions of this factory, the bulk modulus of air is 1.42 x 105 Pa. What is the highest-frequency sound to which this machine can be adjusted without exceeding the prescribed limit? Is this frequency audible to the workers?
