Chapter 3: Q100P (page 580)

One experimental method of measuring an insulating material鈥檚 thermal conductivity is to construct a box of the material and measure the power input to an electric heater inside the box that maintains the interior at a measured temperature above the outside surface. Suppose that in such an apparatus a power input of 180Wis required to keep the interior surface of the box(about120F掳) above the temperature of the outer surface. The total area of the box is2.18m2, and the wall thickness is 3.90cm. Find the thermal conductivity of the material in SI units.

Short Answer

Expert verified

The thermal conductivity of the material in SI units is0.05W/m.K.

Step by step solution

01

Definition of the heat current

The heat current in conduction is,

H=dQdt=kATH-TcL

Here, k is the thermal conductivity of rod material, A is the cross-sectional area of the rod, and TH-TCLis the temperature difference per unit length, called temperature gradient.

02

Calculation of the thermal conductivity of the material in SI units

Given that the change in temperature is TH-Tc=65C掳, the power is H = 180W , the cross-sectional area of the box isA=2.18m2, and the thickness of the box is.

L=3.9脳10-2m

The thermal conductivity of the material from the heat current in conduction is,

k=HLATH-Tc

Substitute all the known values in the above equation to find the thermal conductivity.

k=180W脳3.9脳10-2m2.18m2脳65掳C=0.05W/m.C掳=0.05W/m.K

Hence, the thermal conductivity of the material in SI units is 0.05W/m.K.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A cylinder with a piston contains 0.250 mol of oxygen at 2.40 * 105 Pa and 355 K. The oxygen may be treated as an ideal gas. The gas first expands isobarically to twice its original volume. It is then compressed isothermally back to its original volume, and finally it is cooled isochorically to its original pressure. (a) Show the series of processes on a pV-diagram. Compute (b) the temperature during the isothermal compression; (c) the maximum pressure; (d) the total work done by the piston on the gas during the series of processes.

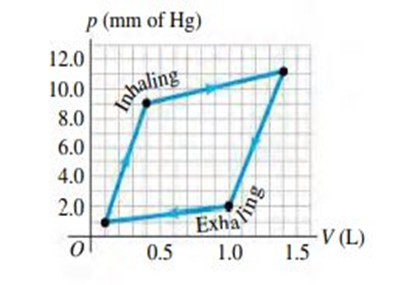

Work Done by the Lungs. The graph in Fig. E19.4 shows a pV-diagram of the air in a human lung when a person is inhaling and then exhaling a deep breath. Such graphs, obtained in clinical practice, are normally somewhat curved, but we have modelled one as a set of straight lines of the same general shape. (Important: The pressure shown is the gauge pressure, not the absolute pressure.) (a) How many joules of net work does this person鈥檚 lung do during one complete breath? (b) The process illustrated here is somewhat different from those we have been studying, because the pressure change is due to changes in the amount of gas in the lung, not to temperature changes. (Think of your own breathing. Your lungs do not expand because they鈥檝e gotten hot.) If the temperature of the air in the lung remains a reasonable 20掳C, what is the maximum number of moles in this person鈥檚 lung during a breath
