Two slits spaced 0.450 mm apart are placed 75.0 cm from a screen. What is the distance between the second and third dark lines of the interference pattern on the screen when the slits are illuminated with coherent light with a wavelength of 500 nm?

Short Answer

Expert verified

The distance between the second and third dark lines of interference pattern is 0.83mm.

Step by step solution

01

Given Data

Wavelength emitted: 500nm

Distance between slit and screen: 75.0cm

Distance between slits: 0.45mm

02

(a) Concept of Young’s double-slit experiment.

The redistribution of the intensity of light is when lights from two coherent sources having the same phase are superimposed on each other. This phenomenon is called interference of light.

The expression of the location of dark bands here is,

»å²õ¾±²Ôθ=(m+12)λ²õ¾±²Ôθ=(m+12)λd,m=0,±1,±2,... ...(i)

Here, λ is the wavelength, m is the order of the fringe, θis the angular separation of fringe from the center of the central fringe, and d is the sli

03



The first dark line is for m = 0,

The second dark line is for m = 1,

sinθ1=3λ2d=3500×10-9m20.450×10-3m=1.667×10-3rad

The third dark line is for m = 2,

sinθ2=5λ2d=3500×10-9m20.450×10-3=2.778×10-3

Each dark line is at a distance from the centre of the central bright, the expression of the distance,

ym=¸é³Ù²¹²Ôθ

Where R = 0.850 m is the distance between the screen and the slits.

For small values ofθ,ym=¸éθm,

role="math" localid="1663936712432" y1=Rθ1=0.750ml2.778×10-3rad=1.25×10-3m

y2=Rθ2=0.750ml2.778×10-3rad=2.08×10-3m

∆y=y2-y1=2.08×10-3m-1.25×10-3=0.83mm

Thus, the distance between the two slits 0.83mm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Light of wavelength λand frequency v passes through a single slit of width a. The diffraction pattern is observed on a screen a distance x from the slit. Which of the following will decrease the width of the central maximum? (a) Decrease the slit width; (b) decrease the frequency v of the light; (c) decrease the wavelength λof the light; (d) decrease the distance of the screen from the slit. In each case justify your answer.

The vitreous humor, a transparent, gelatinous fluid that fills most of the eyeball, has an index of refraction of 1.34. Visible light ranges in wavelength from 380 nm (violet) to 750 nm (red), as measured in air. This light travels through the vitreous humor and strikes the rods and cones at the surface of the retina. What are the ranges of (a) the wavelength, (b) the frequency, and (c) the speed of the light just as it approaches the retina within the vitreous humor?

A double-convex thin lens has surfaces with equal radii of curvature of magnitude 2.50cm . Using this lens, you observe that it forms an image of a very distant tree at a distance of 1.87cm from the lens. What is the index of refraction of the lens?

An object 0.6 cm tall is placed 16.5 cm to the left of the vertex of a concave spherical mirror having a radius of curvature of 22 cm. (a) Draw a principal-ray diagram showing the formation of the image. (b) Determine the position, size, orientation, and nature (real or virtual) of the image.

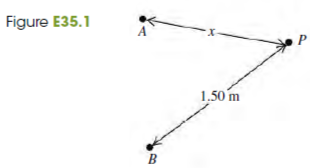

Two small stereo speakers A and B that are 1.40 m apart are sending out sound of wavelength 34 cm in all directions and all in phase. A person at point P starts out equidistant from both speakers and walks so that he is always 1.50 m from speaker B (Fig. E35.1). For what values of x will the sound this person hears be (a) maximally reinforced, (b) cancelled? Limit your solution to the cases where x ≤1.50 m.
