Chapter 5: Q19E (page 1152)

34.19 A person swimming 0.80cm below the surface of the water in a swimming pool looks at the diving board that is directly overhead and sees the image of the board that is formed by refraction at the surface of the water. This image is a height of 5.20 m above the swimmer. What is the actual height of the diving board above the surface of the water?

Short Answer

Expert verified

The actual height of diving board above the surface of water is 3.30m.

Step by step solution

01

Formula for Spherical refracting surface with plane surface between two optical materials

nas+nbs'=0

02

Determine the actual height of diving board above the surface of water

There is a special case for the spherical refracting surface which is the plane surface between two materials where R=鈭�. In this case, use the below equation for a plane refracting surface in the form

nas+nbs'=0

Wherena is the refractive index of the air and equals 1,nb is the refractive index of water and equals 1.333. The distance s is the distance from the diving board to the person.s' is the apparent depth and equals s'=5.20m-0.80m=4.40m. So, solve equation for s

s=-(nanb)s' (1)

Put the values in above equation,

s=-(nanb)s'=-(1.01.333)-4.40m=3.30m

Hence, the actual height of diving board above the surface of water is 3.30m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

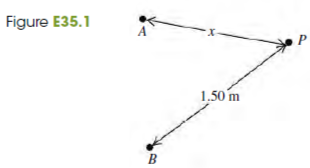

Two small stereo speakers A and B that are 1.40 m apart are sending out sound of wavelength 34 cm in all directions and all in phase. A person at point P starts out equidistant from both speakers and walks so that he is always 1.50 m from speaker B (Fig. E35.1). For what values of x will the sound this person hears be (a) maximally reinforced, (b) cancelled? Limit your solution to the cases where x 鈮�1.50 m.
