Chapter 5: Q14DQ (page 1211)

Could x-ray diffraction effects with crystals be observed by using visible light instead of x-rays? Why or why not?

Short Answer

Expert verified

No, x-ray diffraction effects cannot be observed with visible light.

Step by step solution

01

Given Data

Diffraction is a process by which a beam of light spreads when passing through a narrow passage or across the edge of an obstacle accompanied by interference between the waveforms.

02

X-ray vs Visible light

According to Bragg鈥檚 condition for x-ray diffraction:

2d蝉颈苍胃=尘位

It can be seen that d is directly proportional to 位, and since d is of the order of 10-10m, 位has to be the same order or magnitude. But the visible spectrum lies within 400 nm to 700 nm. So, it is not possible for visible light to mimic x-ray diffraction.

Therefore, it is not possible for visible light to mimic x-ray diffraction.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A person looks at his reflection in the concave side of a shiny spoon. Is it right side up or inverted? Does it matter how far his face is from the spoon? What if he looks in the convex side?

Monochromatic light is directed at normal incidence on a thin film. There is destructive interference for the reflected light, so the intensity of the reflected light is very low. What happened to the energy of the incident light?

Some loudspeaker horns for outdoor concerts (at which the entire audience is seated on the ground) are wider vertically than horizontally. Use diffraction ideas to explain why this is more efficient at spreading the sound uniformly over the audience than either a square speaker horn or a horn that is wider horizontally than vertically. Would this still be the case if the audience were seated at different elevations, as in an amphitheater? Why or why not?

Why can we readily observe diffraction effects for sound waves and water waves, but not for light? Is this because light travels so much faster than these other waves? Explain.

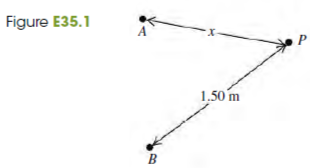

Two small stereo speakers A and B that are 1.40 m apart are sending out sound of wavelength 34 cm in all directions and all in phase. A person at point P starts out equidistant from both speakers and walks so that he is always 1.50 m from speaker B (Fig. E35.1). For what values of x will the sound this person hears be (a) maximally reinforced, (b) cancelled? Limit your solution to the cases where x 鈮�1.50 m.
