A small block with a mass of 0.0600 kg is attached to a cord passing through a hole in a frictionless, horizontal surface (Fig. P6.71). The block is originally revolving at a distance of 0.40 m from the hole with a speed of 0.70 m/s . The cord is then pulled from below, shortening the radius of the circle in which the block revolves to 10 m . At this new distance, the speed of the block is 2.80 m/s. (a) What is the tension in the cord in the original situation, when the block has speed v=0.70m/s? (b) What is the tension in the cord in the final situation, when the block has speed v=2.80m/s?

Short Answer

Expert verified
  1. When velocity of the revolving block is 0.70 m/s ,the tension in the string is 0.07 N
  2. When velocity of the revolving block is 2.80 m/s ,the tension in the string is 4.70 N

Step by step solution

01

Identification of given data

The given data can be listed below,

  • The mass of the block is,m=0.060kg
  • The initial speed of block is,vj=0.70m/s2
  • The initial distance at which block is revolving,rj=0.4m
  • The final speed of the block is,vf=2.80m/s
02

Concept/Significance of tension

When an item is pulled from both sides, a force known as tension acts axially. Being a force, it frequently has units like pounds or newtons.

03

(a) Determination of the tension in the cord in the original situation, when the block has speed v = 0.70 m/s

The tension in the cord is equal to the centripetal force which can be given by,

Ti=mvi2ri

Here, m is the mass of the block,vi is the initial velocity of the block, andri is the initial distance at which block is revolving.

Substitute all the values in the above,

T=0.06kg0.7m/s220.4m=0.07N

Thus, the tension in the string when block is revolving with a velocity 0.70 m/s is 0.07 N

04

(b) Determination of the tension in the cord in the final situation, when the block has speed v = 2.80 m/s

The tension in the cord is equal to the centripetal force which can be given by,

Tf=mvf2rf

Here, m is the mass of the block,vf is the final velocity of the block, andrf is the final distance at which block is revolving.

Substitute all the values in the above,

T=0.06kg2.80m/s220.10m=4.70N

Thus, the tension in the string when block is revolving with a velocity 2.80 m/s is 4.70 N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An antelope moving with constant acceleration covers the distance between two points 70.0apart in6.00s. Its speed as it passes the second point is15.0m/s. What are (a) its speed at the first point and (b) its acceleration?

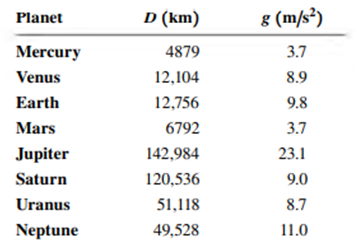

For a spherical planet with mass M, volume V, and radius R,derive an expression for the acceleration due to gravity at the planet’s surface, g, in terms of the average density of the planet, ÒÏ=M/V, and the planet’s diameter, D=2R. The table gives the values of Dand gfor the eight major planets:
