Problem 9.62: Engineers are designing a system by which a falling mass mimparts kinetic energy to a rotating uniform drum to which it is attached by thin, very light wire wrapped around the rim of the drum (Fig. P9.62). There is no appreciable friction in the axle of the drum, and everything starts from rest. This system is being tested on earth, but it is to be used on Mars, where the acceleration due to gravity is 3.71ms2. In the earth tests, when mis set to 15.0kg and allowed to fall through 5.00m, it gives 250.0Jof kinetic energy to the drum. (a) If the system is operated on Mars, through what distance would the 15.0kgmass have to fall to give the same amount of kinetic energy to the drum? (b) How fast would the 15.0kgmass be moving on Mars just as the drum gained 250.0Jof kinetic energy?

Short Answer

Expert verified

The required distance is 13.2mwould the 15kgmass have to fall to give the same amount of kinetic energy to the drum.

(b) The velocity is 8.04msthat would the15kg mass be moving on Mars just as the drum gained250.0J of kinetic energy.

Step by step solution

01

Conservation of energy:

The total energy of an isolated system remains constant regardless of any internal changes that may occur, whereby energy disappears in one form and reappears in another.

02

Given data:

Mass, m=15.0kg

Distance travelled in the earth’s gravitational field, he=5.00m

Kinetic energy gained by the drum, Ke=250.0J

Acceleration due to gravity on mars,gm=3.71ms2

03

(a) Determine the required distance:

In the Earth:

According to law of conservation of energy you can write the following formula.

Ke+12mv2=mghKe+12mr2Ó¬2=mgh12mr2Ó¬2=mgh-Ke

Substitute known values in the above equation.

12mr2Ó¬2=(15.0kg)(9.8ms2)(5.00m)-250.0J=485J

In the mars, the mass and radius of the drum remain unchanged. So the moment of inertia also remains same which implies the kinetic energy of the drum is unaltered. Therefore, kinetic energy of the falling mass also unchanged.

So decrease in potential energy of the mass is Mars is,

mgMhM=12mÓ¬2r2+KehM=12mÓ¬2r2+KemgM

Putting known values in the above equation, and you get

hM=485J+250J15kg3.71ms2=13.2m

Hence, the required distance is13.2m would the 15kg mass have to fall to give the same amount of kinetic energy to the drum.

04

(b) Define the required velocity:

As kinetic energy is same as in earth. Thus, the kinetic energy of the falling mass is,

12mv2=485.0Jv2=2×485.0Jmv=2×485.0J15.0kg

role="math" localid="1662226511558" v=8.04ms

Hence, the velocity is8.04ms that would the15kg mass be moving on Mars just as the drum gained250.0J of kinetic energy.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

How many gallons of gasoline are used in the United States in one day? Assume that there are two cars for every three people, that each car is driven an average of 10,000 miles per year, and that the average car gets 20 miles per gallon.

At a certain instant, the earth, the moon, and a stationary 1250-kg spacecraft lie at the vertices of an equilateral triangle whosesides are r1=3.48×105kmin length. (a) Find the magnitude and direction of the net gravitational force exerted on the spacecraft by the earth and moon. State the direction as an angle measured from a line connecting the earth and the spacecraft. In a sketch, show the earth, the moon, the spacecraft, and the force vector. (b) What is the minimum amount of work that you would have to do to move the spacecraft to a point far from the earth and moon? Ignore any gravitational effects due to the other planets or the sun.

Planet Vulcan.Suppose that a planet were discovered between the sun and Mercury, with a circular orbit of radius equal to 2/3 of the average orbit radius of Mercury. What would be the orbital period of such a planet? (Such a planet was once postulated, in part to explain the precession of Mercury’s orbit. It was even given the name Vulcan, although we now have no evidence that it actually exists. Mercury’s precession has been explained by general relativity.)

You take an empty glass jar and push it into a tank of water with the open mouth of the jar downward, so that the air inside the jar is trapped and cannot get out. If you push the jar deeper into the water, does the buoyant force on the jar stay the same? If not, does it increase or decrease? Explain.

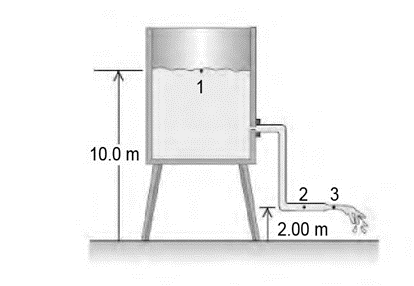

Water flows steadily from an open tank as in Fig. P12.81. The elevation of point 1 is 10.0 m, and the elevation of points 2 and 3 is 2.00 m. The cross-sectional area at point 2 is 0.0480 m2; at point 3 it is 0.0160 m2. The area of the tank is very large compared with the cross-sectional area of the pipe. Assuming that Bernoulli’s equation applies, compute (a) the discharge rate in cubic meters per second and (b) the gauge pressure at point 2.
