A model of a helicopter rotor has four blades, each 3.40 m long from the central shaft to the blade tip. The model is rotated in a wind tunnel at 550 rev/min. (a) What is the linear speed of the blade tip, in m/s? (b) What is the radial acceleration of the blade tip expressed as a multiple of g?

Short Answer

Expert verified
  1. The linear velocity of the blade is 195.8 m/s.
  2. The radial acceleration of the blade tip is 11275.8 m/s2or 1.15x103g.

Step by step solution

01

Identification of given data:

The given data can be listed below,

  • The length of blades of rotor is, r = 3.4 m
  • The rate of rotation of rotor is,Ó¬=550rev/min
02

Concept/Significance of radial acceleration:

The acceleration in a uniform circular motion that is pointed in that direction is referred to as centripetal or radial acceleration.

03

(a) Determination of the linear speed of the blade tip:

The linear velocity of the blade is given by,

v=Ó¬r

Here, Ó¬is the angular velocity of the blade, and r is the radial distance.

Substitute all the values in the above,

v=550rev/s2π60rad/srev/min×3.4m=57.6rev/s3.4m=195.8m/s

Thus, the linear velocity of the blade is 195.8 m/s.

04

(b) Determination of the radial acceleration of the blade tip expressed as a multiple of  g:

The radial acceleration of the object is given by,

ar=v2R

Here, v is the velocity of the blade and R is the radius of rotor.

Substitute all the values in the above.

ar=195.8m/s23.4m=11275.8m/s2g9.8m/s2=1.15×103g

Thus, the radial acceleration of the blade tip is 11275.8m/s2or1.15×103g.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A shower head has 20 circular openings, each with radius 1.0 mm. The shower head is connected to a pipe with radius 0.80 cm. If the speed of water in the pipe is 3.0 m/s, what is its speed as it exits the shower-head openings?

The dwarf planet Pluto has an elliptical orbit with a semi-major axis of 5.91×1012 mand eccentricity 0.249.

(a) Calculate Pluto’s orbital period. Express your answer in seconds and in earth years.

(b) During Pluto’s orbit around the sun, what are its closest and farthest distances from the sun?

Planet Vulcan.Suppose that a planet were discovered between the sun and Mercury, with a circular orbit of radius equal to 2/3 of the average orbit radius of Mercury. What would be the orbital period of such a planet? (Such a planet was once postulated, in part to explain the precession of Mercury’s orbit. It was even given the name Vulcan, although we now have no evidence that it actually exists. Mercury’s precession has been explained by general relativity.)

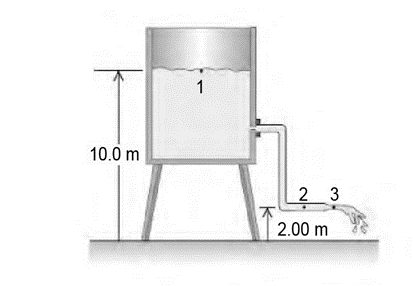

Water flows steadily from an open tank as in Fig. P12.81. The elevation of point 1 is 10.0 m, and the elevation of points 2 and 3 is 2.00 m. The cross-sectional area at point 2 is 0.0480 m2; at point 3 it is 0.0160 m2. The area of the tank is very large compared with the cross-sectional area of the pipe. Assuming that Bernoulli’s equation applies, compute (a) the discharge rate in cubic meters per second and (b) the gauge pressure at point 2.
