Chapter 1: Q25E (page 94)

A jet plane comes in for a downward dive as shown in Fig. E3.25. The bottom part of the path is a quarter circle with a radius of curvature of 280 m. According to medical tests, pilots will lose consciousness when they pull out of a dive at an upward acceleration greater than 5.5g. At what speed (in m/s and in mph) will the pilot black out during this dive?

Short Answer

Expert verified

The velocity of pilot during the dive is 128.8 m/s or 274.7 mph.

Step by step solution

01

Identification of given data:

The given data can be listed below,

  • The radius of curvature of the path is, R = 280 m
  • The radial acceleration of the pilots is, ar=5.5g=5.5脳9.8m/s2=53.9m/s2.
02

Concept/Significance of radial velocity:

A particle's velocity along the observer's line of sight is known as its radial component. It is a part of a radial direction change in location per unit of time.

03

Determination of the speed (in m/s and in mph) will the pilot blackout during the dive:

The velocity of the pilot is given by,

ar=v2Rv=arR

Here, ar is the radial acceleration, and R is the radius of the path.

Substitute all the values in the above expression.

v=53.9m/s2280m=122.8m/s1mph0.4770m/s=274.7mph

Hence, the velocity of pilot during the dive is 128.8 m/s or 274.7 mph.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Find the magnitude and direction of the net gravitational force on mass A due to masses B and C in Fig. E13.6. Each mass is.

Figure E13.6

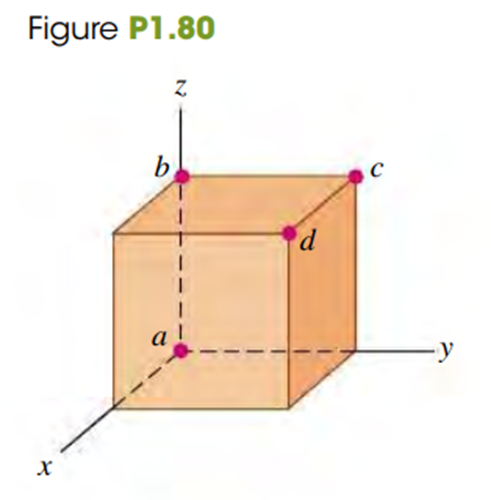

A cube is placed so that one corner is at the origin and three edges are along the x-, y-, and z-axes of a coordinate system (Fig. P1.80). Use vectors to compute (a) the angle between the edge along the z-axis (line ab) and the diagonal from the origin to the opposite corner (line ad), and (b) the angle between line ac (the diagonal of a face) and line ad.
