If an object on a horizontal, frictionless surface is attached to a spring, displaced, and then released, it will oscillate. If it is displaced 0.120m from its equilibrium position and released with zero initial speed, then after 0.800sits displacement is found to be 0.120mon the opposite side, and it has passed the equilibrium position once during this interval. Find (a) the amplitude, (b) the period; (c) the frequency.

Short Answer

Expert verified

(a) The amplitude is 0.120 m.

(b) The period is 1.6 s.

(c) The frequency is 0.625 Hz.

Step by step solution

01

Step 1: Definition of amplitude, period, and frequency.

The amplitude of motion can be defined as the maximum distance that an object travels before coming back to its original position.

The period can be defined as the time taken required to complete one cycle or oscillation.

Frequency is defined as the number of oscillations done by an object per second.

02

Step 2: (a) Calculate the amplitude.

It is given that the spring travels from -0.120mto +0.120m. Thus, its amplitude is the maximum distance its travels from the equilibrium position.

Therefore, the amplitude is 0.120m.

03

Step 3: (b) Calculate the period.

Consider the given data as below.

Time,t=0.800s

In this question, the given time is the time required by object to complete half cycle i.e. it moves either left or right from the origin in that given time. Therefore, the time period in this case will be,

t=T2T=2t

Here, T is the time period.

Substitute value of in above expression to get time period.

role="math" localid="1663932862451" T=20.800S=1.6S

Therefore, the time period is1.6S .

04

Step 4: (c) Determine frequency.

The relation between frequency and time period is given by,

f=1T

Substitute value of in above expression to get frequency

f=11.6s=0.625Hz

Therefore, the frequency is 0.625 Hz.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In an experiment, a shearwater (a seabird) was taken from its nest, flown 5150 km away, and released. The bird found its way back to its nest 13.5 days after release. If we place the origin at the nest and extend the +x-axis to the release point, what was the bird’s average velocity in (a) for the return flight and (b) for the whole episode, from leaving the nest to returning?

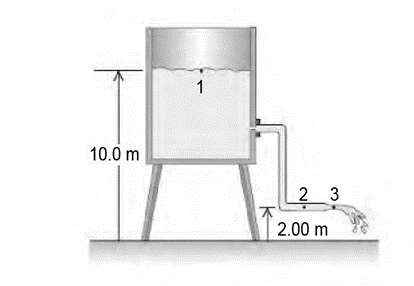

Water flows steadily from an open tank as in Fig. P12.81. The elevation of point 1 is 10.0 m, and the elevation of points 2 and 3 is 2.00 m. The cross-sectional area at point 2 is 0.0480 m2; at point 3 it is 0.0160 m2. The area of the tank is very large compared with the cross-sectional area of the pipe. Assuming that Bernoulli’s equation applies, compute (a) the discharge rate in cubic meters per second and (b) the gauge pressure at point 2.
