In the circuit shown in Fig. P30.57, the switch S has been open for a long time and is suddenly closed. Neither the battery nor the inductors have any appreciable resistance. What do the ammeter and the voltmeter read (a) just after S is closed; (b) after S has been closed a very long time; (c) 0.115 ms after S is closed?

Short Answer

Expert verified

A) Current is i=emfRfor RC circuit and i=0for RL circuit b) Current is zero for RC circuit and iR=emfRfor RL circuit.

Step by step solution

01

Concept when S is closed

Just after the switch is closed in the R 鈥 C circuit, the current flow through the resistor R and the initial current is i=emfRWhile just after the switch is closed in the R 鈥 L circuit, the current wouldn't flow through the circuit and the initial current is zero.i=0

02

Concept when after S has been closed a very long time

After a long time, for R 鈥 C circuit, the uncharged capacitor will be charged with the same potential of the battery and in this case, the current will be zeroi=0 For R 鈥 L circuit, the change on current in the inductor will be zero, while through the resistance it will be constantiR=emfR

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In the circuit shown in Fig. E26.47 each capacitor initially has a charge of magnitude 3.50 nC on its plates. After the switch S is closed, what will be the current in the circuit at the instant that the capacitors have lost 80.0% of their initial stored energy?

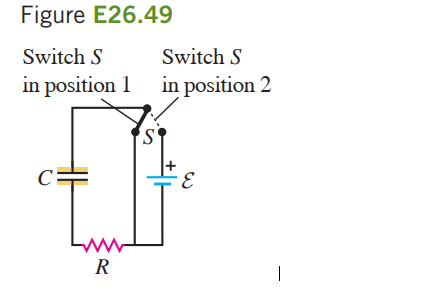

In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
