Chapter 4: Q55E (page 916)

You wish to hit a target from several meters away with a charged coin having a mass of 4.25 gand a charge of +2500渭C. The coin is given an initial velocity of, and a downward, uniform electric field with field strength 27.5 N/Cexists throughout the region. If you aim directly at the target and fire the coin horizontally, what magnitude and direction of uniform magnetic field are needed in the region for the coin to hit the target?

Short Answer

Expert verified

The magnitude and direction of uniform magnetic field are needed in the region for the coin to hit the target are 3.45 T and to the left when viewed on the direction of the target.

Step by step solution

01

Magnetic and electrical force

The magnetic force and electrical force

qVB = qE + mg

02

Step 2: Identification of the given data

The value of mass is, m = 4.25 g

The value of charge is, q = 2500 渭C .

The initial velocity is, v = 12.8 m/s

The value of field strength is, E = 27.5 N/C .

03

Determine themagnitude of magnetic force and direction

The magnetic force is given by

qvB = qE + mg

Therefore,

B=qE+mgqv

Substitute all the value in the above equation.

B=2500脳10鈭�6C(27.5N/C)+(0.00425kg)9.80m/s22500脳10鈭�6C(12.8m/s)=3.45T

Since the direction of the electric field is downwards, so the magnetic force is upwards.

Therefore, the direction of the magnetic field is into the page.

Therefore, the magnetic field is 3.45 T

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A beam of protons traveling at 1.20 km/s enters a uniform magnetic field, traveling perpendicular to the field. The beam exits the magnetic field, leaving the field in a direction pependicurlar to its original direction (Fig. E27.24). The beam travels a distance of 1.10 cm while in the field. What is the magnitude of the magnetic field?

Questions: A conductor that carries a net charge has a hollow, empty cavity in its interior. Does the potential vary from point to point within the material of the conductor? What about within the cavity? How does the potential inside the cavity compare to the potential within the material of the conductor?

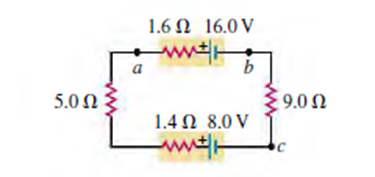

Consider the circuit of Fig. E25.30. (a)What is the total rate at which electrical energy is dissipated in the 5.0-鈩� and 9.0-鈩� resistors? (b) What is the power output of the 16.0-V battery? (c) At what rate is electrical energy being converted to other forms in the 8.0-V battery? (d) Show that the power output of the 16.0-V battery equals the overall rate of consumption of electrical energy in the rest of the circuit.

Fig. E25.30.

CALC The region between two concentric conducting spheres with radii and is filled with a conducting material with resistivity 蚁. (a) Show that the resistance between the spheres is given by

R=蚁4蟺(1a-1b)

(b) Derive an expression for the current density as a function of radius, in terms of the potential differenceVab between the spheres. (c) Show that the result in part (a) reduces to Eq. (25.10) when the separation L=b-abetween the spheres is small.

In the circuit shown in Fig. E26.20, the rate at which R1 is dissipating electrical energy is 15.0 W. (a) Find R1 and R2. (b) What is the emf of the battery? (c) Find the current through both R2 and the 10.0 惟 resistor. (d) Calculate the total electrical power consumption in all the resistors and the electrical power delivered by the battery. Show that your results are consistent with conservation of energy.
