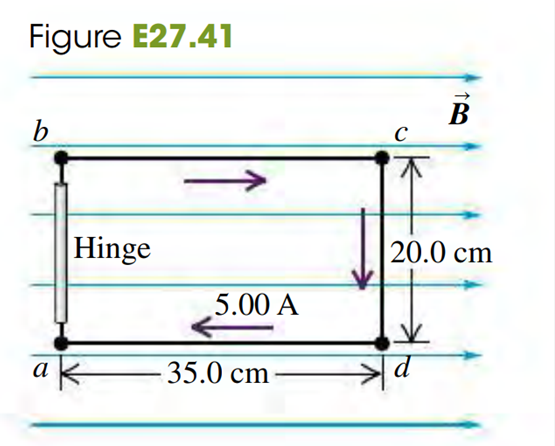

Rectangular circuit has, ad = cd = 20.0 cm

Rectangular circuit has, bc = ad = 35.0 cm

The current is, l = 5.00A = 5.00 A

The uniform magnetic field is, B = 1.20 T

(a)

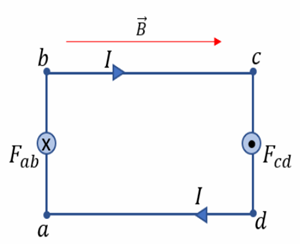

Current is in upward direction in ab and downward in cd while magnetic field is in right side.by right hand rule direction of force acting on ab inwards and cd is outwards.no force acts on bc and ad. thus, current is parallel and anti-parallel to magnetic field.

(b)

Force acting on ab will not exert any torque because circuit is hinged alongside ab. force acting on cd tends to rotate loop about hinge and thus it produces torque about axis. Force acting on wire is,

$F=llB\sin 蠒$

Here I is the current, l is the wire length and B is the magnetic field.

Substitute all the value in the above equation.

$\begin{array}{r}{F}_{cd}=IIB\sin 鈦�\left(蠒\right)\\ =\left(5\mathrm{A}\right)脳\left(0.200\mathrm{m}\right)脳\left(1.20\mathrm{T}\right)脳\sin 鈦�\left(90\right)\\ =1.20\mathrm{N}\end{array}$

Thus, the forces that exert this torque is${\mathrm{F}}_{\mathrm{cd}}=1.20\mathrm{N}$

(c)

The torque is expressed as,

$\begin{array}{r}蟿=F_{cd}r\\ =\left(1.20\mathrm{N}\right)\left(0.350\mathrm{m}\right)\\ =0.420\mathrm{Nm}\\ 蟿=0.420\mathrm{Nm}\end{array}$

Thus, the torque that the magnetic field exerts on the circuit about the hinge axis ab is$蟿=0.420\mathrm{Nm}$ .
