In Fig., C1 = 6.00 mF, C2 = 3.00 mF, and C3 = 5.00 mF. The capacitor network is connected to an applied potential Vab. After the charges on the capacitors have reached their final values, the charge on C2 is 30.0 mC.

(a) What are the charges on capacitors C1 and C3?

(b) What is the applied voltage Vab?

Short Answer

Expert verified

a) The charge on the capacitor C1is 60μ¹ó.

The charge on the capacitor role="math" localid="1665027698801" C3is 90μ¹ó

b) The potential difference across a and b is 28.0V.

Step by step solution

01

About connections of capacitors

We are given a system of three capacitors where C1=6.00μFand C2=3.00 μFwhere both capacitors C1&C2are in parallel connection. Also, the third capacitor C2=5.00 μFwhere C3is connected in series with the equivalent capacitance Ceqof C1&C2

The charge on the second capacitance is Q2=30.0data-custom-editor="chemistry" μ¹ó.
02

Charge on each resistors.

We are given Q2, so we can use it for Q1 where we see two capacitors C1&C2are in parallel, and as the two capacitors are in parallel, hence the two capacitors have the same voltage

V1=V2Q1C1=Q2C2Q1=Q2C1C2

Substitute the given values in the above equations.

Q1=Q2C1C2

30.0μC6.00μE3.00μE

We would get the total charge on the capacitors C1&C2because it will help us to find Q3 So the total charge for both capacitors is

Q=Q1+Q2=60.0μC+30.0μC=90.0μC

As we mentioned in the subsection given the equivalent capacitance of capacitors C1&C2is in a series connection with the third capacitor C3wherein a series connection the magnitude of the charge on all plates is the same, therefore, the capacitor C3has the same charge Q of the equivalent capacitance

Q3=90.0μC

03

About potential difference.

To determine the applied voltage across ab

Vab=QCeq

Where Q represents the charge on the third capacitor Q=90.0 Ceqand is the equivalent capacitance on the system (between CeqandCeq) in series. In series, the equivalent capacitance Ceqcould be

1Ceq=1Ceq+1C3

Where Ceqrepresents the equivalent capacitance between C1&C2and both are in parallel

Hence,

C'eq=C1+C2

Now substitute in the above equation

role="math" localid="1665029468212" 1Ceq=1C1+C2+1C3

1Ceq=16.00μF+3.00μF+15.00μF1Ceq=0.3111Ceq=3.21μF

Hence the potential difference across ab is

Vab=QCeq=90.0μC3.21μF=28.0V

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A circular area with a radius of6.50cmlies in the xy-plane. What is the magnitude of the magnetic flux through this circle due to a uniform magnetic fieldlocalid="1655727900569" B→=0.230T(a) in the direction of +z direction; (b) at an angle of53.1°from the direction; (c) in the direction?

A beam of protons traveling at 1.20 km/s enters a uniform magnetic field, traveling perpendicular to the field. The beam exits the magnetic field, leaving the field in a direction pependicurlar to its original direction (Fig. E27.24). The beam travels a distance of 1.10 cm while in the field. What is the magnitude of the magnetic field?

When switch Sin Fig. E25.29 is open, the voltmeter V reads 3.08 V. When the switch is closed, the voltmeter reading drops to 2.97 V, and the ammeter A reads 1.65 A. Find the emf, the internal resistance of the battery, and the circuit resistance R. Assume that the two meters are ideal, so they don’t affect the circuit.

Fig. E25.29.

(a) What is the potential difference Vadin the circuit of Fig. P25.62? (b) What is the terminal voltage of the 4.00-Vbattery? (c) A battery with emf and internal resistance 0.50Ωis inserted in the circuit at d, with its negative terminal connected to the negative terminal of the 8.00-Vbattery. What is the difference of potential Vbcbetween the terminals of the 4.00-Vbattery now?

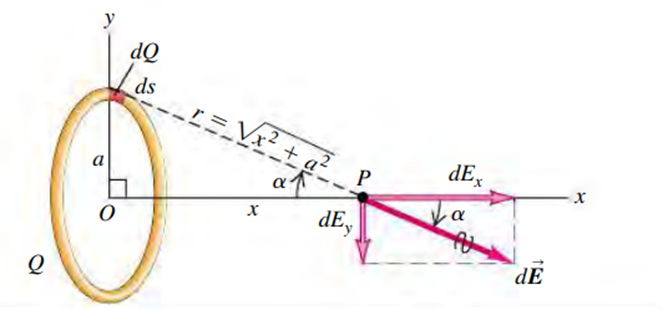

Question:A ring-shaped conductor with radius a = 2.50 cm has a total positive charge Q = +0.125 nC uniformly distributed around it (see Fig. 21.23). The center of the ring is at the origin of coordinates O. (a) What is the electric field (magnitude and direction) at point P, which is on the x-axis at x = 40.0 cm? (b) A point charge q = -2.50 μC is placed at P. What are the magnitude and direction of the force exerted by the charge q on the ring?
