In the situation shown in Fig. 29.18, would it be appropriate to ask how much energy an electron gains during a complete trip around the wire loop with current I′? Would it be appropriate to ask what potential difference the electron moves through during such a complete trip? Explain your answers.

Short Answer

Expert verified

Yes, it is appropriate to ask how much energy is gained by an electron but no it is not appropriate to ask what potential difference the electron moves through during a complete trip.

Step by step solution

01

Important Concept

The net work done by forces on a body equals the change in its kinetic energy (∆E), according to the work-energy theorem.

Work Done=∆E

02

Application

Yes, it is appropriate to ask how many energy an electron gains during a complete trip. When an emf is induced in the loop, there is an induced electric field of non-electrostatic origin. This field is non-conservative.

Thus, there is a work done on the electron after it moves a complete round, this work is given by:

Work=Egained=±ðε

Here, Egainedis the gained kinetic energy, is the charge, and εis the emf.

No, it is not appropriate to ask what potential difference the electron moves through during a complete trip. Since the field is non-conservative and can not be associated with potential, the loop is equipotential and the potential difference between any two points on the loop is zero.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

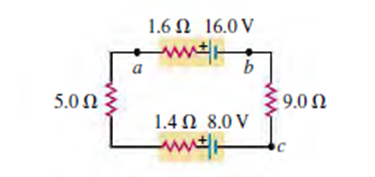

Consider the circuit of Fig. E25.30. (a)What is the total rate at which electrical energy is dissipated in the 5.0-Ω and 9.0-Ω resistors? (b) What is the power output of the 16.0-V battery? (c) At what rate is electrical energy being converted to other forms in the 8.0-V battery? (d) Show that the power output of the 16.0-V battery equals the overall rate of consumption of electrical energy in the rest of the circuit.
