Pilots can be tested for the stresses of flying high-speed jets in a whirling 鈥渉uman centrifuge,鈥 which takes 1.0 min to turn through 23 complete revolutions before reaching its final speed. (a) What was its angular acceleration (assumed constant), and (b) what was its final angular speed in rpm?

Short Answer

Expert verified

The results for parts (a) and (b) are \(46\;{\rm{rev/mi}}{{\rm{n}}^2}\) and \(46\;{\rm{rev/min}}\), respectively.

Step by step solution

01

Given data

The number of complete revolutions is\(\theta = 23\,{\rm{rev}}\).

The time required is \(t = 1\;{\rm{min}}\).

02

Understanding angular acceleration

The relation to find the angular acceleration is given by:

\(\theta = {\omega _1}t + \frac{1}{2}\alpha {t^2}\)

Here, \({\omega _1}\) is the initial angular speed, whose value is zero and \(\alpha \) is the angular acceleration.

On plugging the values in the above relation, you get:

\(\begin{aligned}{c}23\;{\rm{rev}} = 0 + \frac{1}{2}\alpha {\left( {1\;{\rm{min}}} \right)^2}\\\alpha = 46\;{\rm{rev/mi}}{{\rm{n}}^2}\end{aligned}\)

Thus, \(\alpha = 46\;{\rm{rev/mi}}{{\rm{n}}^2}\) is the required angular acceleration.

03

Determine the angular speed

The relation to find the angular speed is given by:

\(\theta = \frac{1}{2}\left( {{\omega _1} + {\omega _2}} \right)t\)

On plugging the values in the above relation, you get:

\(\begin{aligned}{c}23\;{\rm{rev}} &= \frac{1}{2}\left( {0 + {\omega _2}} \right)\left( {1\;{\rm{min}}} \right)\\{\omega _2} &= 46\;{\rm{rev/min}}\end{aligned}\)

Thus, \({\omega _2} = 46\;{\rm{rev/min}}\) is the required angular speed.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

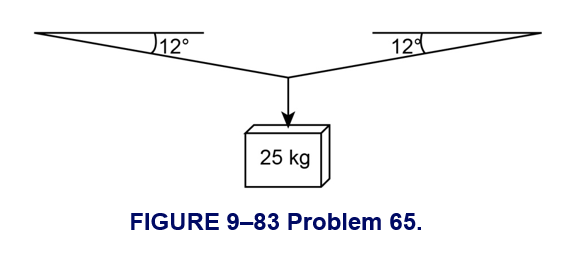

When a mass of 25 kg is hung from the middle of a fixed straight aluminum wire, the wire sags to make an angle of 12掳 with the horizontal as shown in Fig. 9鈥83. Determine the radius of the wire.
