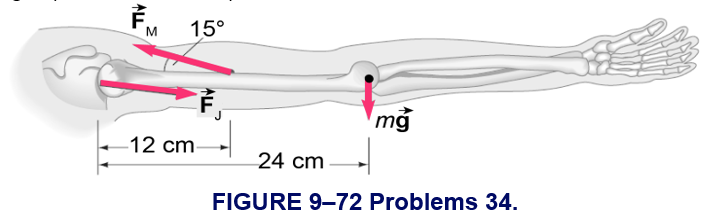

(II) (a) Calculate the magnitude of the force, required of the 鈥渄eltoid鈥 muscle to hold up the outstretched arm shown in Fig. 9鈥72. The total mass of the arm is 3.3 kg. (b) Calculate the magnitude of the force exerted by the shoulder joint on the upper arm and the angle (to the horizontal) at which it acts.

Short Answer

Expert verified
  1. The force required to hold up the outstretched arm is 250.61 N.
  2. The magnitude of the force due to the shoulder joint is \(244.24{\rm{ N}}\). The angle that the force due to the shoulder joint makes with the horizontal axis is \(7.64^\circ \).

Step by step solution

01

Identification of given data

The given data can be listed below as:

  • The force due to the deltoid muscle is\({F_{\rm{M}}}\).
  • The force exerted by the shoulder joint is\({F_{\rm{J}}}\).
  • The total mass of the arm is\(m = 3.3{\rm{ kg}}\).
  • The acceleration due to gravity is\(g = 9.81{\rm{ m/}}{{\rm{s}}^2}\).
  • The angle of inclination of the deltoid muscle force is \(\theta = 15^\circ \).
02

Understanding the mechanism of the arm

The force required to outstretch the arm acts at an angle of 15 degrees. The force acts on the shoulder joint at some inclination. The total mass of the arm acts in the downward direction.

At equilibrium, the net torques about the joint axis can be equated to zero. The torque due to the mass of the arm acts in the clockwise direction. The force required to outstretch the arm acts in the anticlockwise direction.With the help of equilibrium equations, the required forces can be evaluated.

03

Representation of the forces acting on the arm

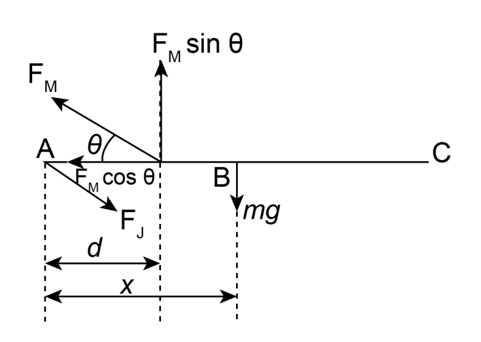

The forces acting on the arm can be represented as:

Here, A can be considered as the pivot point as the force due to the shoulder joint is unknown. The value of x is 24 cm and the value of d is 12 cm.

04

(a) Determination of the force required to hold up the outstretched arm

At equilibrium, the net torques acting on the arm about point A becomes zero.

From the above figure, the torques equation can be expressed as:

\(\begin{array}{c}\sum {{T_{net}}} = 0\\ - {F_{\rm{M}}}\sin \theta \times d + mg \times x = 0\\{F_{\rm{M}}}\sin \theta \times d = mg \times x\\{F_{\rm{M}}} = \frac{{mgx}}{{d\sin \theta }}\end{array}\)

Substitute the values in the above equation.

\(\begin{array}{c}{F_{\rm{M}}} = \frac{{3.3{\rm{ kg}} \times 9.81{\rm{ m/}}{{\rm{s}}^2} \times 24{\rm{ cm}}\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ cm}}}}} \right)}}{{12{\rm{ cm}}\left( {\frac{{1{\rm{ m}}}}{{100{\rm{ cm}}}}} \right)\sin 15^\circ }}\\ = \frac{{7.769}}{{0.031}}\;{\rm{kg}} \cdot {\rm{m/}}{{\rm{s}}^2}\left( {\frac{{1{\rm{ N}}}}{{1{\rm{ kg}} \cdot {\rm{m/}}{{\rm{s}}^2}}}} \right)\\ = 250.61{\rm{ N}}\end{array}\)

Thus, the force required to hold up the outstretched arm is 250.61 N.

05

(b) Determination of the force required to hold up the outstretched arm

At equilibrium, the forces along the vertical direction can be equated to zero. From the figure, the y-component of force due to the shoulder joint can be expressed as:

\(\begin{array}{c}\sum {{F_{\rm{y}}}} = 0\\ - {F_{{\rm{Jy}}}} + {F_{\rm{M}}}\sin \theta - mg = 0\\{F_{{\rm{Jy}}}} = {F_{\rm{M}}}\sin \theta - mg\end{array}\)

Substitute the values in the above equation.

\(\begin{array}{c}{F_{{\rm{Jy}}}} = 250.61{\rm{ N}}\left( {\frac{{1{\rm{ kg}} \cdot {\rm{m/}}{{\rm{s}}^2}}}{{1{\rm{ N}}}}} \right) \times \sin 15^\circ - 3.3{\rm{ kg}} \times 9.81{\rm{ m/}}{{\rm{s}}^2}\;\left( {\frac{{1{\rm{ N}}}}{{1{\rm{ kg}} \cdot {\rm{m/}}{{\rm{s}}^2}}}} \right)\\ = 32.49{\rm{ N}}\end{array}\)

At equilibrium, the forces along the horizontal direction can be equated to zero.

From figure (b), the x-component of force due to the shoulder joint can be expressed as:

\(\begin{array}{c}\sum {{F_x}} = 0\\{F_{{\rm{Jx}}}} - {F_{\rm{M}}}\cos \theta = 0\\{F_{{\rm{Jx}}}} = {F_{\rm{M}}}\cos \theta \end{array}\)

Substitute the values in the above equation.

\(\begin{array}{c}{F_{{\rm{Jx}}}} = 250.61{\rm{ N}} \times \cos 15^\circ \\ = 242.07\,{\rm{N}}\end{array}\)

06

Determination of the resultant magnitude of the force due to the shoulder joint

The resultant force due to the shoulder joint can be expressed as:

\({F_{\rm{J}}} = \sqrt {F_{{\rm{Jx}}}^{\rm{2}} + F_{{\rm{Jy}}}^{\rm{2}}} \)

Substitute the values in the above equation.

\(\begin{array}{c}{F_{\rm{J}}} = \sqrt {{{\left( {242.07\,{\rm{N}}} \right)}^2} + {{\left( {32.49{\rm{ N}}} \right)}^2}} \\ = \sqrt {59653.485} {\rm{ N}}\\ = 244.24{\rm{ N}}\end{array}\)

Thus, the magnitude of the force due to the shoulder joint is \(244.24{\rm{ N}}\).

07

Determination of the angle of inclination of the force due to the shoulder joint

The angle of inclination due to the shoulder joint can be expressed as:

\(\begin{array}{c}\tan \theta = \frac{{{F_{{\rm{Jy}}}}}}{{{F_{{\rm{Jx}}}}}}\\\theta = {\tan ^{ - 1}}\left( {\frac{{{F_{{\rm{Jy}}}}}}{{{F_{{\rm{Jx}}}}}}} \right)\end{array}\)

Substitute the values in the above equation.

\(\begin{array}{c}\theta = {\tan ^{ - 1}}\left( {\frac{{32.49{\rm{ N}}}}{{242.07\,{\rm{N}}}}} \right)\\ = 7.64^\circ \end{array}\)

Thus, the angle that the force due to the shoulder joint makes with the horizontal axis is \(7.64^\circ \).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

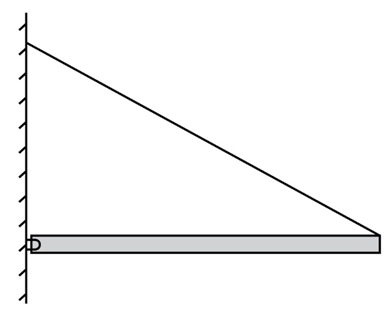

A uniform beam is hinged at one end and held in a horizontal position by a cable, as shown in Fig. 9鈥42. The tension in the cable

(a) must be at least half the weight of the beam, irrespective of the angle of the cable.

(b) could be less than half the beam鈥檚 weight for some angles.

(c) will be half the beam鈥檚 weight for all angles.

(d) will be equal to the beam鈥檚 weight for all angles.

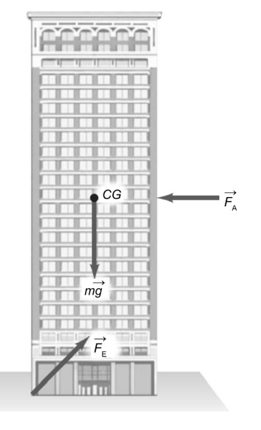

Question:A 50-story building is being planned. It is to be 180.0 m high with a base 46.0 m by 76.0 m. Its total mass will be about\({\bf{1}}{\bf{.8 \times 1}}{{\bf{0}}^{\bf{7}}}\;{\bf{kg}}\)and its weight therefore about\({\bf{1}}{\bf{.8 \times 1}}{{\bf{0}}^{\bf{8}}}\;{\bf{N}}\). Suppose a 200-km/h wind exerts a force of\({\bf{950}}\;{\bf{N/}}{{\bf{m}}^{\bf{2}}}\)over the 76.0-m-wide face (Fig. 9鈥80). Calculate the torque about the potential pivot point, the rear edge of the building (where acts in Fig. 9鈥80), and determine whether the building will topple. Assume the total force of the wind acts at the midpoint of the building鈥檚 face, and that the building is not anchored in bedrock. [Hint:\({\vec F_{\rm{E}}}\)in Fig. 9鈥80 represents the force that the Earth would exert on the building in the case where the building would just begin to tip.]

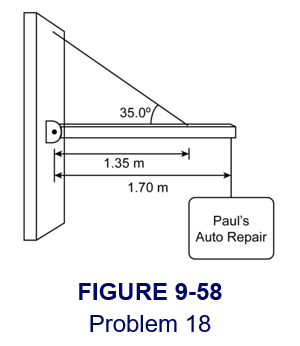

A shop sign weighing 215 N hangs from the end of a uniform 155-N beam, as shown in Fig. 9鈥58. Find the tension in the supporting wire (at 35.0掳) and the horizontal and vertical forces exerted by the hinge on the beam at the wall. [Hint: First, draw a free-body diagram

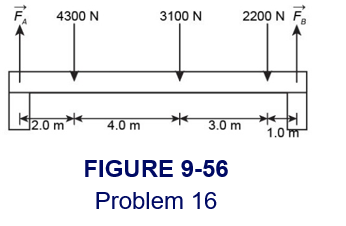

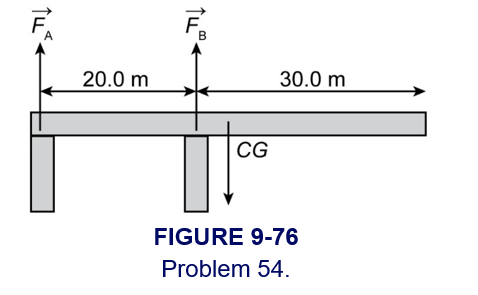

Calculate \({F_{\rm{A}}}\) and \({F_{\rm{B}}}\) for the beam shown in Fig. 9鈥56. The downward forces represent the weights of machinery on the beam. Assume that the beam is uniform and has a mass of 280 kg.

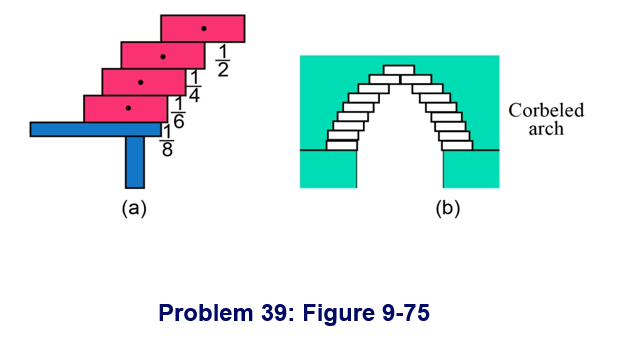

(III) Four bricks are to be stacked at the edge of a table, each brick overhanging the one below it, so that the top brick extends as far as possible beyond the edge of the table. (a) To achieve this, show that successive bricks must extend no more than (starting at the top) \(\frac{{\bf{1}}}{{\bf{2}}}{\bf{,}}\frac{{\bf{1}}}{{\bf{4}}}{\bf{,}}\frac{{\bf{1}}}{{\bf{6}}}\) and \(\frac{{\bf{1}}}{{\bf{8}}}\)of their length beyond the one below (Fig. 9鈥75a). (b) Is the top brick completely beyond the base? (c) Determine a general formula for the maximum total distance spanned by n bricks if they are to remain stable. (d) A builder wants to construct a corbeled arch (Fig. 9鈥75b) based on the principle of stability discussed in (a) and (c) above. What minimum number of bricks, each 0.30 m long and uniform, is needed if the arch is to span 1.0 m?
