Chapter 9: Q14P (page 230)

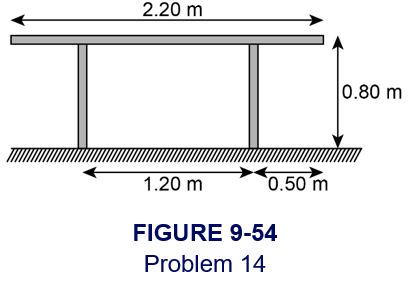

How close to the edge of the 24.0 kg table shown in Fig. 9鈥�54 can a 66.0 kg person sit without tipping it over?

Short Answer

Expert verified

The person can sit at 0.28 m from the edge without tipping it over.

Step by step solution

01

Concepts

According to the second condition of equilibrium, the torque about any point is zero.In this problem, the table is not tipping over, and the torque about any point is zero.

02

Explanation

The mass of the table is \(m = 24.0\;{\rm{kg}}\).

The mass of the person is \(M = 66.0\;{\rm{kg}}\).

The length of the table is \(L = 2.20\;{\rm{m}}\).

You can assume that the mass of the table is at its middle point.

Let x be the distance of the person from the edge of the table.

03

Calculation

The free-body diagram of the problem is given below.

Now, you know that the second condition for equilibrium is that the torque about any axis is zero. Let the right leg of the table be your rotational axis. Then, for stability, the torque about this point is zero.

Then,

\(\begin{array}{c}mg \times \left( {0.60\;{\rm{m}}} \right) - Mg \times \left( {0.50\;{\rm{m}} - x} \right) = 0\\M\left( {0.50\;{\rm{m}} - x} \right) = m\left( {0.60\;{\rm{m}}} \right)\\\left( {66.0\;{\rm{kg}}} \right) \times \left( {0.50\;{\rm{m}} - x} \right) = \left( {24.0\;{\rm{kg}}} \right) \times \left( {0.60\;{\rm{m}}} \right)\\x = 0.28\;{\rm{m}}\end{array}\).

Hence, the person can sit at 0.28 m from the edge without tipping it over.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(I) A sign (mass 1700 kg) hangs from the bottom end of a vertical steel girder with a cross-sectional area of \({\bf{0}}{\bf{.012}}\;{{\bf{m}}^{\bf{2}}}\). (a) What is the stress within the girder? (b) What is the strain on the girder? (c) If the girder is 9.50 m long, how much is it lengthened? (Ignore the mass of the girder itself.)

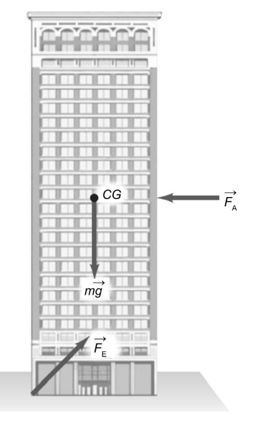

Question:A 50-story building is being planned. It is to be 180.0 m high with a base 46.0 m by 76.0 m. Its total mass will be about\({\bf{1}}{\bf{.8 \times 1}}{{\bf{0}}^{\bf{7}}}\;{\bf{kg}}\)and its weight therefore about\({\bf{1}}{\bf{.8 \times 1}}{{\bf{0}}^{\bf{8}}}\;{\bf{N}}\). Suppose a 200-km/h wind exerts a force of\({\bf{950}}\;{\bf{N/}}{{\bf{m}}^{\bf{2}}}\)over the 76.0-m-wide face (Fig. 9鈥�80). Calculate the torque about the potential pivot point, the rear edge of the building (where acts in Fig. 9鈥�80), and determine whether the building will topple. Assume the total force of the wind acts at the midpoint of the building鈥檚 face, and that the building is not anchored in bedrock. [Hint:\({\vec F_{\rm{E}}}\)in Fig. 9鈥�80 represents the force that the Earth would exert on the building in the case where the building would just begin to tip.]

Parachutists whose chutes have failed to open have been known to survive if they land in deep snow. Assume that a 75-kg parachutist hits the ground with an area of impact of\(0.30\;{{\rm{m}}^2}\)at a velocity of\(55\;{\rm{m/s}}\)and that the ultimate strength of body tissue is\(5 \times {10^5}\;{\rm{N/}}{{\rm{m}}^2}\). Assume that the person is brought to rest in 1.0 m of snow. Show that the person may escape serious injury.

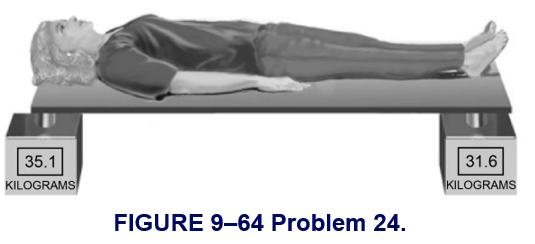

(II) A 172-cm-tall person lies on a light (massless) board which is supported by two scales, one under the top of her head and one beneath the bottom of her feet (Fig. 9鈥�64). The two scales read, respectively, 35.1 and 31.6 kg. What distance is the center of gravity of this person from the bottom of her feet?

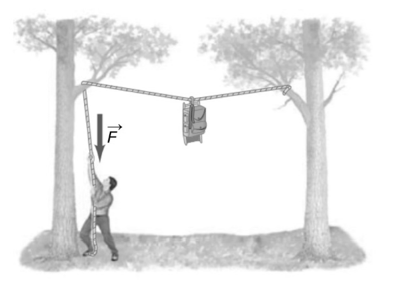

(II) The two trees in Fig. 9鈥�51 are 6.6 m apart. A backpacker is trying to lift his pack out of the reach of bears. Calculate the magnitude of the force\(\vec F\)that he must exert downward to hold a 19-kg backpack so that the rope sags at its midpoint by (a) 1.5 m, (b) 0.15 m.
