Chapter 12: Q23P (page 328)

Question: (I) What are the lowest and highest frequencies that an ear can detect when the sound level is 40 dB? (See Fig. 12鈥�6.)

Short Answer

Expert verified

The minimum and maximum frequencies that an ear can detect at \(40{\rm{ dB}}\) is \(80{\rm{ Hz}}\) and \(20000{\rm{ Hz}}\) respectively.

Step by step solution

01

Step-1:-Understanding limits of hearing

The lowest sound that is audible for an ear is the threshold of hearing. Similarly, the threshold of pain is the maximum sound that an ear can accept, and above that limit causes pain.

02

Step-2:-Given data

The sound level is \(40\;{\rm{dB}}\).

03

Step-3:-Calculation of highest and lowest frequencies

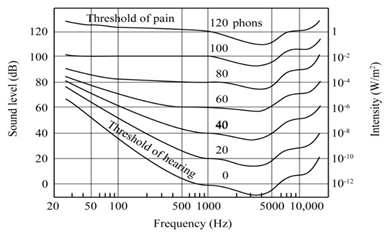

The following is the graph between sound level, intensity and frequency.

From the above graph, the minimum frequency that an ear can detect at \(40{\rm{ dB}}\) is around \(80{\rm{ Hz}}\). The curve for the threshold of hearing is not intersecting the sound level \(40{\rm{ dB}}\) at any other point. So, the maximum frequency can be taken as \(20000{\rm{ Hz}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Standing waves can be said to be due to 鈥渋nterference in space,鈥� whereas beats can be said to be due to 鈥渋nterference in time.鈥� Explain.

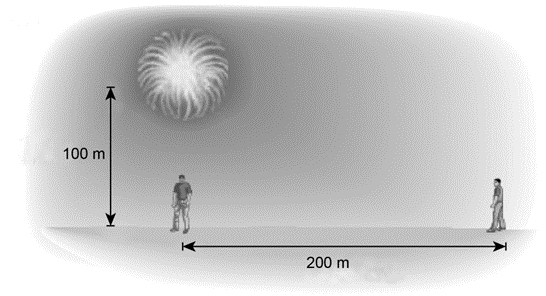

A fireworks shell explodes 100 m above the ground, creating colorful sparks. How much greater is the sound level of the explosion for a person at a point directly below the explosion than for a person a horizontal distance of 200 m away (Fig. 12-34)?

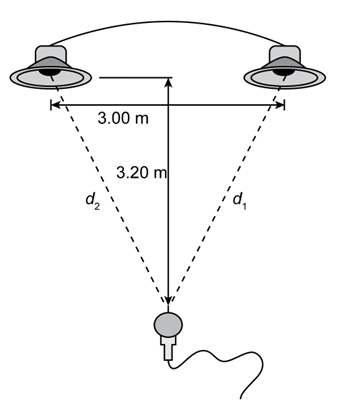

(III) Two loudspeakers are placed 3.00 m apart, as shown in Fig. 12鈥�37. They emit 474-Hz sounds, in phase. A microphone is placed 3.20 m distant from a point midway between the two speakers, where an intensity maximum is recorded. (a) How far must the microphone be moved to the right to find the first intensity minimum? (b) Suppose the speakers are reconnected so that the 474-Hz sounds they emit are exactly out of phase. At what positions are the intensity maximum and minimum now?

Figure 12-37

You look directly overhead and see a plane exactly 1.45 km above the ground flying faster than the speed of sound. By the time you hear the sonic boom, the plane has traveled a horizontal distance of 2.0 km. See Fig. 12-38. Determine (a) the angle of the shock cone, \(\theta \), and (b) the speed of the plane and its Mach number. Assume the speed of sound is 330 m/s.

Question: (II) (a) Determine the length of an open organ pipe that emits middle C (262 Hz) when the temperature is 18掳C. (b) What are the wavelength and frequency of the fundamental standing wave in the tube? (c) What are \(\lambda \)and f in the traveling sound wave produced in the outside air?
