Bonnie sits on the outer rim of a merry-go-round, and Jill sits midway between the centre and the rim. The merry-go-round makes one complete revolution every 2 seconds. Jill’s linear velocity is:

(a) the same as Bonnie’s.

(b) twice Bonnie’s.

(c) half of Bonnie’s.

(d) one-quarter of Bonnie’s.

(e) four times Bonnie’s.

Short Answer

Expert verified

The correct answer is option (c) half of Bonnie’s.

Step by step solution

01

Given data

The time required to complete the revolution is \(t = 2\;{\rm{s}}\).

02

Understanding linear velocity

In this problem, one of the misconceptions is that if Jill and Bonnie consume equal time to complete the merry-go-round, their linear velocities will be equivalent.

03

Determine the velocity of Jill

Bonnie is sitting on the outer edge of the merry-go-round, whereas Jill is sitting midway between the center and the rim. So, the distance traveled by Bonnie will be more compared to the distance covered by Jill.

The relation of the linear velocity of Bonnie is:

\({v_{\rm{B}}} = \omega r\)

Here, r is the radius of the ride and \(\omega \) is the angular velocity.

The relation of the linear velocity of Jill is:

\(\begin{aligned}{l}{v_{\rm{J}}} = \omega \left( {\frac{r}{2}} \right)\\{v_{\rm{J}}} = \left( {\frac{1}{2}} \right)\omega r\\{v_{\rm{J}}} = \left( {\frac{1}{2}} \right){v_{\rm{B}}}\end{aligned}\)

Thus, option (c) is the correct answer.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

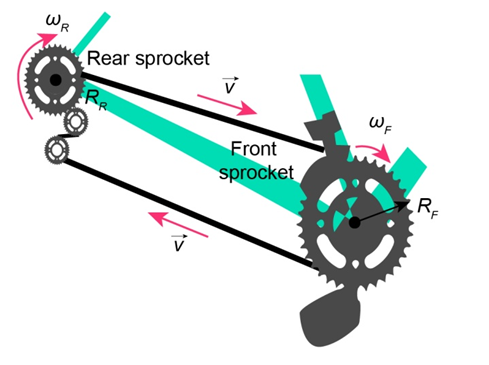

Bicycle gears: (a) How is the angular velocity\({{\bf{\omega }}_{\bf{R}}}\) of the rear wheel of a bicycle related to the angular velocity\({{\bf{\omega }}_{\bf{F}}}\)of the front sprocket and pedals? Let \({{\bf{N}}_{\bf{F}}}\) and \({{\bf{N}}_{\bf{R}}}\) be the number of teeth on the front and rear sprockets, respectively, Fig. 8–58. The teeth are spaced the same on both sprockets and the rear sprocket is firmly attached to the rear wheel. (b) Evaluate the ratio when the front and rear sprockets have 52 and 13 teeth, respectively, and (c) when they have 42 and 28 teeth.

When a motorcyclist leaves the ground on a jump and leaves the throttle on (so the rear wheel spins), why does the front of the cycle rise up?

The platter of the hard drive of a computer rotates at 7200 rpm (rpm = revolutions per minute = rev/min). (a) What is the angular velocity \(\left( {{{{\bf{rad}}} \mathord{\left/{\vphantom {{{\bf{rad}}} {\bf{s}}}} \right.} {\bf{s}}}} \right)\) of the platter? (b) If the reading head of the drive is located 3.00 cm from the rotation axis, what is the linear speed of the point on the platter just below it? (c) If a single bit requires \({\bf{0}}{\bf{.50}}\;{\bf{\mu m}}\) of length along the direction of motion, how many bits per second can the writing head write when it is 3.00 cm from the axis?

A centrifuge rotor rotating at 9200 rpm is shut off and eventually brought uniformly to rest by a frictional torque of \({\bf{1}}{\bf{.20}}\;{\bf{m}} \cdot {\bf{N}}\). If the mass of the rotor is 3.10 kg, and it can be approximated as a solid cylinder of radius 0.0710 m, through how many revolutions will the rotor turn before coming to rest, and how long will it take?

Question:(II) A figure skater can increase her spin rotation rate from an initial rate of 1.0 rev every 1.5 s to a final rate of 2.5 rev/s. If her initial moment of inertia was\(4.6\;{\rm{kg}} \cdot {{\rm{m}}^2}\), what is her final moment of inertia? How does she physically accomplish this change?
