Chapter 7: 85GP (page 170)

A massless spring with spring constant k is placed between a block of mass m and a block of mass 3m. Initially the blocks are at rest on a frictionless surface and they are held together so that the spring between them is compressed by an amount D from its equilibrium length. The blocks are then released and the spring pushes them off in opposite directions. Find the speeds of the two blocks when they detach from the spring.

Short Answer

Expert verified

The speed of the block of mass m is\(3D\sqrt {\frac{k}{{12m}}} \), and the speed of the block of mass 3m is\(D\sqrt {\frac{k}{{12m}}} \).

Step by step solution

01

Identification of the given data

The spring constant is k.

The masses of the two blocks are m and 3m.

The compression in the spring is D.

02

Statement of the principle of conservation of linear momentum

The principle of conservation of linear momentum states that if two bodies collide with each other, the total linear momentum before and after the collision remains the same if no external force acts on the system.It is given as:

\(\begin{aligned}{c}{p_{{\rm{before}}}} = {p_{{\rm{after}}}}\\{\left( {mv} \right)_{{\rm{before}}}} = {\left( {mv} \right)_{{\rm{after}}}}\end{aligned}\)

03

Statement of the principle of conservation of energy

According to the principal of conservation of energy, the total energy of the system before the collision is equal to the total energy of the system after the collision.

It is given as:

\({\left( {KE + PE} \right)_{{\rm{before}}}} = {\left( {KE + PE} \right)_{{\rm{after}}}}\)

04

Applying the law of conservation of linear momentum

There is no external force acting on the system; so the total momentum is conserved.

Let the final velocity of mass m be\({v_{\rm{m}}}\), and that of mass 3m be\({v_{{\rm{3m}}}}\). Initially, the blocks are at rest. Therefore, their initial linear momentum is zero.

\(\begin{aligned}{c}{p_{{\rm{before}}}} = {p_{{\rm{after}}}}\\0 = m{v_{\rm{m}}} + 3m\left( { - {v_{{\rm{3m}}}}} \right)\\{v_{\rm{m}}} = 3{v_{{\rm{3m}}}}\end{aligned}\) 鈥� (i)

05

Applying the law of conservation of energy

In this interaction, energy is conserved, i.e., the initial potential energy of the mass-spring system is equal to the final kinetic energy of the moving blocks. Therefore, applying the law of conservation of energy, you get:

\(\begin{aligned}{c}P{E_{{\rm{spring initial}}}} = K{E_{{\rm{final}}}}\\\frac{1}{2}k{D^2} = \frac{1}{2}mv_{\rm{m}}^2 + \frac{1}{2}\left( {3m} \right)v_{{\rm{3m}}}^2\\k{D^2} = mv_{\rm{m}}^2 + \left( {3m} \right)v_{{\rm{3m}}}^2\end{aligned}\) 鈥� (ii)

06

Determination of the final speeds of the two blocks

Substitute equation (i) in (ii).

\(\begin{aligned}{c}k{D^2} = m{\left( {3{v_{{\rm{3m}}}}} \right)^2} + \left( {3m} \right)v_{{\rm{3m}}}^2\\k{D^2} = 12mv_{{\rm{3m}}}^2\\{v_{{\rm{3m}}}} = D\sqrt {\frac{k}{{12m}}} \end{aligned}\)

Substitute the value of\({v_{{\rm{3m}}}}\)in equation (i).

\( \Rightarrow {v_{\rm{m}}} = 3D\sqrt {\frac{k}{{12m}}} \)

Thus the velocity of the mass m is \(3D\sqrt {\frac{k}{{12m}}} \).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You are the design engineer in charge of the crashworthiness of new automobile models. Cars are tested by smashing them into fixed, massive barriers at 45 km/h. A new model of mass 1500 kg takes 0.15 s from the time of impact until it is brought to rest. (a) Calculate the average force exerted on the car by the barrier. (b) Calculate the average deceleration of the car in g鈥檚.

Two asteroids strike head-on: before the collision, asteroid A\(\left( {{m_{\rm{A}}} = 7.5 \times {{10}^{12}}\;{\rm{kg}}} \right)\)has velocity 3.3 km/s and asteroid B\(\left( {{m_{\rm{B}}} = 1.45 \times {{10}^{13}}\;{\rm{kg}}} \right)\)has velocity 1.4 km/s in the opposite direction. If the asteroids stick together, what is the velocity (magnitude and direction) of the new asteroid after the collision?

The CM of an empty 1250-kg car is 2.40 m behind the front of the car. How far from the front of the car will the CM be when two people sit in the front seat 2.80 m from the front of the car, and three people sit in the back seat 3.90 m from the front? Assume that each person has a mass of 65.0 kg.

A wooden block is cut into two pieces, one with three times the mass of the other. A depression is made in both faces of the cut, so that a firecracker can be placed in it with the block reassembled. The reassembled block is set on a rough-surfaced table, and the fuse is lit. When the firecracker explodes inside, the two blocks separate and slide apart. What is the ratio of distances each block travels?

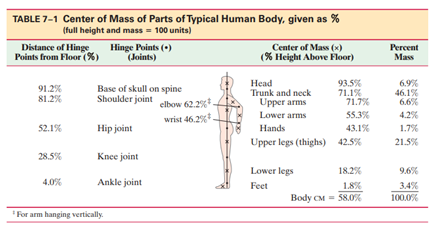

Assume that your proportions are the same as those in Table 7鈥�1, and calculate the mass of one of your legs.
