Chapter 3: Q17. (page 67)

Two cannonballs, A and B, are fired from the ground with identical initial speeds, but with胃Alarger than胃B.(a) Which cannonball reaches a higher elevation?(b) Which stays longer in the air?(c) Which travels farther? Explain.

Short Answer

Expert verified

The obtained solution is that cannonball A will reach a higher elevation and remain longer in the air.

Step by step solution

01

Step 1. Projectile motion

In the case of a projectile motion, the vertical speed of the object is zero at the top of its path.

Between the two cannonballs A and B, cannonball A has a larger angle, and it will reach a higher elevation because the initial vertical velocity is higher.

Thus, cannonball A will reach a higher elevation.

02

Step 2. Determine which cannonball will remain longer in the air

As the initial vertical velocity is higher for cannonball A, it will take more time to decelerate to zero and then begin to fall. Also, cannonball A has a larger angle; therefore, it will remain longer in the air.

Thus, cannonball A will remain longer in the air.

03

Step 3. Determine which cannonball will travel farther

Between the two cannonballs A and B, the ball having the launch angle closest to 45掳will move the farthest. The range is the maximum for a launch angle having 45掳, and it reduces for the angles more or less than 45掳.

Thus, the cannonball with the launch angle closest to 45掳will travel the farthest.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Spymaster Chris, flying a constant 208 km/h horizontally in a low-flying helicopter, wants to drop secret documents into her contact鈥檚 open car which is traveling 156 km/h on a level highway 78.0 m below. At what angle (with the horizontal) should the car be in her sights when the packet is released (Fig. 3鈥�55)?

An airplane, whose airspeed is 580 km/h, is supposed to fly in a straight path38.0掳N of E. However, a steady 82 km/h wind is blowing from the north. In what direction should the plane head? [Hint: Use the law of sines, Appendix A-7.]

A hunter is aiming horizontally at a monkey who is sitting in a tree. The monkey is so terrified when it sees the gun that it falls off the tree. At that very instant, the hunter pulls the trigger. What will happen?

(a) The bullet will miss the monkey because the monkey falls down while the bullet speeds straight forward.

(b) The bullet will hit the monkey because both the monkey and the bullet are falling downward at the same rate due to gravity.

(c) The bullet will miss the monkey because, although both the monkey and the bullet are falling down due to gravity, the monkey is falling faster.

(d) It depends on how far the hunter is from the monkey.

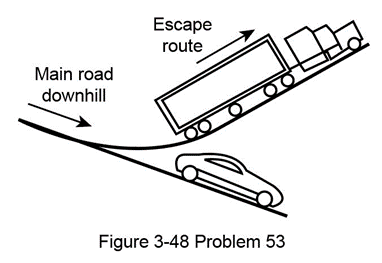

On mountainous downhill roads, escape routes are sometimes placed to the side of the road for trucks whose brakes might fail. Assuming a constant upward slope of26o, calculate the horizontal and vertical components of the acceleration of a truck that slowed from 110 km/h to rest in 7.0 s. See Fig. 3-48.

Does the odometer of a car measure a scalar or a vector quantity? What about speedometer?
