Chapter 10: Q37P (page 260)

(II) On dry land, an athlete weighs\({\rm{70}}{\rm{.2 kg}}\). The same athlete, when submerged in a swimming pool and hanging from a scale, has an 鈥渁pparent weight鈥� of \({\rm{3}}{\rm{.4 kg}}\). Using Example 10-8 as a guide, (a) find the total volume V of the submerged athlete. (b) Assume that when submerged, the athlete鈥檚 body contains a residual volume \({V_{\rm{R}}} = 1.3 \times {10^{ - 3}}{\rm{ }}{{\rm{m}}^3}\)of air (mainly in the lungs). Taking \(V - {V_{\rm{R}}}\)to be the actual volume of the athlete鈥檚 body, find the body鈥檚 specific gravity, \(SG\). (c) What is the athlete鈥檚 percent body fat assuming it is given by the formula \(\left( {495/SG} \right) - 450\)?

Short Answer

Expert verified

(a) Thetotal volume of the submerged athlete is \(6.68 \times {10^{ - 2}}\;{{\rm{m}}^3}\).

(b) Thespecific gravity of athlete鈥檚 body, when submerged is \(1.07\).

(c) The athlete鈥檚 percent body fat is \(12\% \).

Step by step solution

01

Concept of law of equilibrium

According to the law of equilibrium, the forces experienced by the object aligned in a direction must be balanced. That suggests the net force on the object must be zero.

02

Given data

The actual mass of the athleteis \({{\rm{m}}_{{\rm{actual}}}} = 70.2\;{\rm{kg}}\).

The apparent mass of the athlete is \({{\rm{m}}_{{\rm{apparant}}}} = 3.4\;{\rm{kg}}\).

The residual volume of air (mainly in the lungs) is\({V_{\rm{R}}} = 1.3 \times {10^{ - 3}}{\rm{ }}{{\rm{m}}^3}\).

The density of water is \({\rho _{{\rm{water}}}} = 1000\;{\rm{kg/}}{{\rm{m}}^3}\).

03

Calculation of total volume of submerged athlete

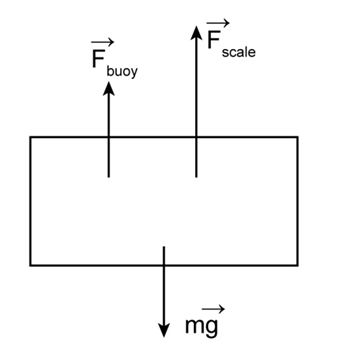

A free body diagram of the forces acting on athlete is shown below:

Using law of equilibrium of forces, total volume of the submerged athlete is:

\(\begin{aligned}{F_{{\rm{bouyant}}}} + {F_{{\rm{scale}}}} - {F_{{\rm{weight}}}} &= 0\\{\rho _{{\rm{water}}}}Vg + {m_{{\rm{apparant}}}}g - {m_{{\rm{actual}}}}g &= 0\\V = \frac{{{m_{{\rm{actual}}}} - {m_{{\rm{apparant}}}}}}{{{\rho _{{\rm{water}}}}}}\end{aligned}\)

Here, \({F_{{\rm{bouyant}}}}\)is the buoyant force, \({F_{{\rm{scale}}}}\)is the scale force, \({F_{{\rm{weight}}}}\)is the force applied by weight and \(g\) is the acceleration due to gravity.

Substitute the values in the above equation to find volume of submerged athlete.

\(\begin{aligned}V &= \frac{{70.2\;{\rm{kg}} - 3.4\;{\rm{kg}}}}{{1000\;{\rm{kg/}}{{\rm{m}}^3}}}\\ &= 6.68 \times {10^{ - 2}}\;{{\rm{m}}^3}\end{aligned}\)

04

Calculation of specific gravity of athlete’s body

\(\begin{aligned}SG &= \frac{{{\rho _{{\rm{athlete}}}}}}{{{\rho _{\rm{w}}}}}\\ &= \frac{{\frac{{{{\rm{m}}_{{\rm{actual}}}}}}{{V - {V_{\rm{R}}}}}}}{{{\rho _{\rm{w}}}}}\end{aligned}\)

Substitute the known values in the above equation to find the specific gravity of athlete鈥檚 body.

\(\begin{aligned}SG &= \frac{{\frac{{70.2\;{\rm{kg}}}}{{\left( {6.68 \times {{10}^{ - 2}}\;{{\rm{m}}^3} - 1.3 \times {{10}^{ - 3}}\;{{\rm{m}}^3}} \right)}}}}{{1000\;{\rm{kg/}}{{\rm{m}}^3}}}\\ &= 1.07\end{aligned}\)

Hence, specific gravity of athlete鈥檚 body is\(1.07\).

05

Calculation of percent athlete’s body fat

The percent athlete鈥檚 body fat is calculated as:

\(\% {\rm{Body fat}} = \frac{{495}}{{SG}} - 450\)

Substitute the values in the above equation to find athlete鈥檚 body fat.

\(\begin{aligned}\% {\rm{Body fat}} &= \frac{{495}}{{SG}} - 450\\ &= \frac{{495}}{{1.07}} - 450\\ &= 12.62\% \\ &\simeq 12\% \end{aligned}\)

Hence, the athlete鈥檚 body fat percentage is \(12\% \).
