Two identical positive charges are placed near each other. At the point halfway between the two charges,

(a) the electric field is zero and the potential is positive.

(b) the electric field is zero and the potential is zero.

(c) the electric field is not zero and the potential is positive.

(d) the electric field is not zero and the potential is zero.

(e) None of these statements is true.

Short Answer

Expert verified

The correct answer is option (a) the electric field is zero and the potential is positive.

Step by step solution

01

Understanding electric field

The electric field at a particular point halfway among the two positive charges is the sum of the electric fields from each positive charge.

02

Evaluation of the electric field and electric potential

The electric field at any point due to a point charge is given by,

\(\overrightarrow E = \frac{{kQ}}{{{r^2}}}\hat r\)

Here, k is the Coulomb鈥檚 constant, Q is the charge and r is the distance.

The electric field is a vector quantity. At the midpoint between the two charges, the magnitude of the electric field is the same but opposite in direction. Therefore, due to both charges, the electric field is added up to give zero at the midpoint.

The electric potential is given as:

\(V = \frac{{kQ}}{r}\)

Electric potential is a scalar quantity. The electric potential due to a positive point charge is positive. So, the electric potential due to both the charges will add up to give a positive value of the electric potential at the point halfway between the two charges.

Thus, the correct option is (a).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(II) Draw a conductor in the oblong shape of a football. This conductor carries a net negative charge -Q, Draw in a dozen or so electric field lines and equipotential lines.

If the electric field \({\bf{\vec E}}\) is uniform in a region, what can you infer about the electric potential V? If V is uniform in a region of space, what can you infer about \({\bf{\vec E}}\).

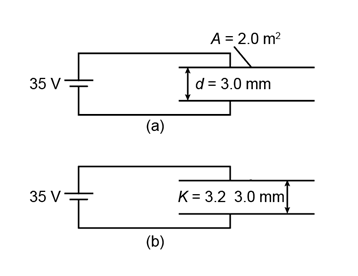

A parallel-plate capacitor with plate area\({\bf{A = 2}}{\bf{.0}}\;{{\bf{m}}{\bf{2}}}\)and plate separation\({\bf{d = 3}}{\bf{.0}}\;{\bf{mm}}\)is connected to a 35-V battery (Fig. 17鈥51a).

(a) Determine the charge on the capacitor, the electric field, the capacitance, and the energy stored in the capacitor.

(b) With the capacitor still connected to the battery, a slab of plastic with dielectric strength K =3.2 is placed between the plates of the capacitor, so that the gap is completely filled with the dielectric (Fig. 17鈥51b). What are the new values of charge, electric field, capacitance, and the energy stored in the capacitor?\(\left( {{\bf{1}}\;{\bf{byte = 8}}\;{\bf{bits}}{\bf{.}}} \right)\)

FIGURE 17-51 Problem 96

(III) How much voltage must be used to accelerate a proton (radius \({\bf{1}}{\bf{.2 \times 1}}{{\bf{0}}^{{\bf{ - 15}}}}\;{\bf{m}}\)) so that it has sufficient energy to just 鈥渢ouch鈥 a silicon nucleus? A silicon nucleus has a charge of \( + 14e\), and its radius is about \({\bf{3}}{\bf{.6 \times 1}}{{\bf{0}}^{{\bf{ - 15}}}}\;{\bf{m}}\). Assume the potential is that for point charges.

A dielectric is pulled out from between the plates of a capacitor which remains connected to a battery. What changes occur to (a) the capacitance, (b) the charge on the plates, (c) the potential difference, (d) the energy stored in the capacitor, and (e) the electric field? Explain your answers.
