(I) What is the magnitude of the electric force of attraction between an iron nucleus (q = +26e) and its innermost electron if the distance between them is\({\bf{1}}{\bf{.5 \times 1}}{{\bf{0}}^{{\bf{ - 12}}}}\;{\bf{m}}\)?

Short Answer

Expert verified

The magnitude of electric force of attraction is \(2.66 \times {10^{ - 3}}\;{\rm{N}}\).

Step by step solution

01

Understanding the electric force

A point charge exerts an electric force on another point charge in the vicinity. It could be attractive as well as repulsive depending upon the nature of the two charges.

The expression for the electric force is given as:

\(F = \frac{{k{Q_1}{Q_2}}}{{{r^2}}}\) … (i)

Here, k is the Coulomb’s constant,\({Q_1},\;{Q_2}\)are the charges and r is the separation between the charges.

02

Given Data

The magnitude of the charge of the electron is, \(e = 1.6 \times {10^{ - 19}}\;{\rm{C}}\)

The charge of the nucleus is, \(q = 26e\).

The separation distance is, \(r = 1.5 \times {10^{ - 12}}\;{\rm{m}}\).

03

Calculation of the magnitude of electric force exerting on charges

From expression (i), the magnitude of the electric force is,

\(F = k\frac{{q \times e}}{{{r^2}}}\)

Substitute the values in the above expression.

\(\begin{aligned}{l}F = \left( {9.0 \times {{10}^9}\;{\rm{N}} \cdot {{\rm{m}}^{\rm{2}}}{\rm{/}}{{\rm{C}}^2}} \right)\left( {\frac{{\left( {26 \times 1.6 \times {{10}^{ - 19}}\;{\rm{C}}} \right)\left( {1.6 \times {{10}^{ - 19}}\;{\rm{C}}} \right)}}{{{{\left( {1.5 \times {{10}^{ - 12}}\;{\rm{m}}} \right)}^2}}}} \right)\\F = 2.66 \times {10^{ - 3}}\;{\rm{N}}\end{aligned}\)

Thus, the magnitude of electric force of attraction is\(2.66 \times {10^{ - 3}}\;{\rm{N}}\).

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A negative point charge is in an electric field created by a positive point charge. Which of the following is true?

(a) The field points toward the positive charge, and the force on the negative charge is in the same direction as the field.

(b) The field points toward the positive charge, and the force on the negative charge is in the opposite direction to the field.

(c) The field points away from the positive charge, and the force on the negative charge is in the same direction as the field.

(d) The field points away from the positive charge, and the force on the negative charge is in the opposite direction to the field.

(II) An electron is released from rest in a uniform electric field and accelerates to the north at a rate of\({\bf{105 m/}}{{\bf{s}}^{\bf{2}}}\).Find the magnitude and direction of the electric field.

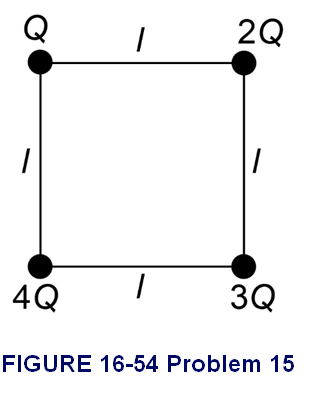

(II) At each corner of a square of side l there are point charges of magnitude Q, 2Q, 3Q, and 4Q (Fig. 16–54). Determine the magnitude and direction of the force on the charge 2Q.

\({Q_1} = - {\bf{0}}{\bf{.10}}\;{\bf{\mu C}}\)is located at the origin. \({Q_2} = {\bf{ + 0}}{\bf{.10}}\;{\bf{\mu C}}\) is located on the positive x-axis at \(x{\bf{ = 1}}{\bf{.0}}\;{\bf{m}}\). Which of the following is true of the force on \({Q_1}\) due to \({Q_2}\)?

(a) It is attractive and directed in the \( + x\) direction.

(b) It is attractive and directed in the \( - x\) direction.

(c) It is repulsive and directed in the \( + x\) direction.

(d) It is repulsive and directed in the \( - x\) direction.

Packing material made of pieces of foamed polystyrene can easily become charged and stick to each other. Given that the density of this material is about \({\bf{35 kg/}}{{\bf{m}}^{\bf{3}}}\), estimate how much charge might be on a 2.0-cm-diameter foamed polystyrene sphere, assuming the electric force between two spheres stuck together is equal to the weight of one sphere.
