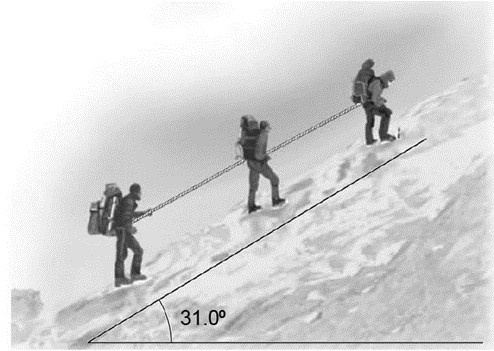

Three mountain climbers, who are roped together in a line, are ascending on an ice field inclined at 31.0掳 to the horizontal (Fig. 4鈥69). The last climber slips, pulling the second climber off his feet. The first climber is able to hold them both. If each climber has a mass of 75 kg, calculate the tension in each of the two sections of the rope between the three climbers. Ignore the friction between the ice and the fallen climbers.

FIGURE 4-69 Problem 83

Short Answer

Expert verified

The tension in the rope between the last two climbers is 378.5N,and the tension in the rope between the first and second climbers is 757N.

Step by step solution

01

Step 1. Newton’s third law

When a force is exerted on a body by another body, the second body exerts a similar force in a different direction on the first object.

02

Step 2. Given information

Given data:

The mass of each climber is m=75kg.

The angle of inclination is =31.

03

Step 3. Calculate the tension in the rope between the last two climbers

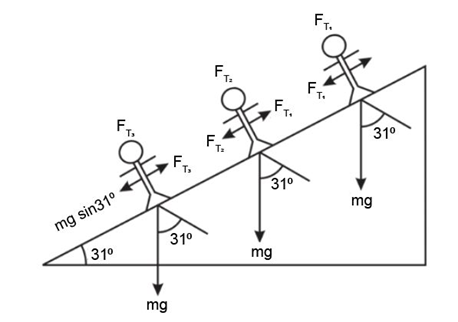

Draw a free-body diagram.

Here, FT3is the tension force for the third climber, FT2is the tension force for the second climber, and FT1is the tension force for the first climber.

Applying the equilibrium condition along the horizontal direction for the third climber,

FT3-mgsin=0FT3-75kg9.8m/s2sin31=0FT3=378.5N.

Thus, the tension in the rope between the last two climbers is 378.5N.

04

Step 4. Calculate the tension in the rope between the first and second climbers

In the equilibrium condition, the force FT2is equal to the force FT3. Therefore,

FT2=FT3FT2=378.5N

From the free-body diagram, the force exerted between the first two climbers can be calculated as

FT1-FT2-mgsin=0FT1=FT2+mgsinFT1=378.5N+75kg9.8m/s2sin31FT1=757N

Thus, the tension in the rope between the first and second climbers is 757N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

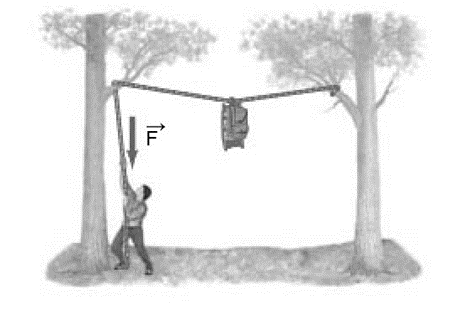

A bear sling (Fig. 4-40) is used in some national parks for placing backpackers鈥 food out of the reach of bears. As a backpacker raises the pack by pulling down on the rope, the force F needed

(a) decreases as the pack rises until the rope is straight across.

(b) doesn鈥檛 change.

(c) increases until the rope is straight.

(d) increases, but the rope always sags where the pack hangs.

Mary exerts an upward force of 40 N to hold a bag of groceries. Describe the 鈥渞eaction鈥 force (Newton鈥檚 third law) by stating (a) its magnitude, (b) its direction, (c) on what object it is exerted, and (d) by what object it is exerted.

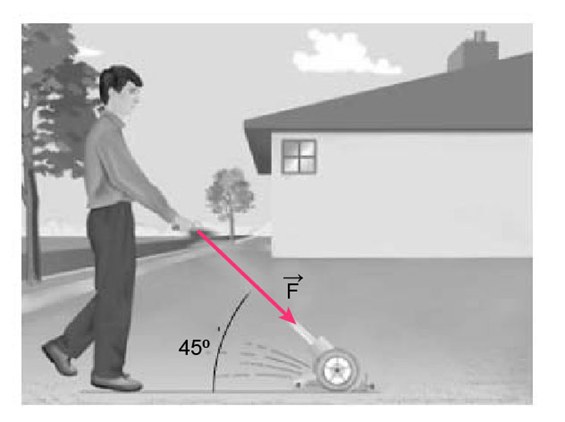

A person pushes a 14.0-kg lawn mower at constant speed with a force ofF=88.0Ndirected along the handle, which is at an angle of 45.0掳 to the horizontal (Fig. 4鈥58). (a) Draw the free-body diagram showing all forces acting on the mower. Calculate (b) the horizontal friction force on the mower, then (c) the normal force exerted vertically upward on the mower by the ground. (d) What force must the person exert on the lawn mower to accelerate it from rest to 1.5 m/s in 2.5 seconds, assuming the same friction force?

FIGURE 4-58 Problem 50.

Figure 4鈥53 shows a block (mass mA) on a smooth horizontal surface, connected by a thin cord that passes over a pulley to a second block (mB), which hangs vertically. (a) Draw a free-body diagram for each block, showing the force of gravity on each, the force (tension) exerted by the cord, and any normal force. (b) Apply Newton鈥檚 second law to find the formulas for the acceleration of the system and the tension in the cord. Ignore the friction and the masses of the pulley and the cord.

FIGURE 4-53 Problems 32 and 33. Mass mA rests on a smooth horizontal surface; mB hangs vertically.

Question: (II) The block shown in Fig. 4鈥59 has massm=7.0kgand lies on a fixed, smooth, frictionless plane tilted at an angle of=22.0to the horizontal. (a) Determine the acceleration of the block as it slides down the plane. (b) If the block starts from rest at 12.0 m above the plane from its base, what will be the block's speed when it reaches the bottom of the incline?
