For the bar magnet of Problem. 6.9, make careful sketches of M, B, and H, assuming L is about 2a. Compare Problem. 4.17.

Short Answer

Expert verified

Draw the careful sketches of for the bar magnet.

Draw the careful sketches of for the bar magnet.

Draw the careful sketches of for the bar magnet.

Step by step solution

01

Write the given data from the question.

Reference as problem 6.9.

Assuming is about 2a.

02

Draw careful sketches of M, B, and H.

Draw the circuit diagram of M for the bar magnet.

Figure 1

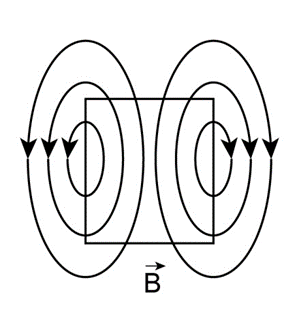

Draw the circuit diagram of for the bar magnet.

Figure 2

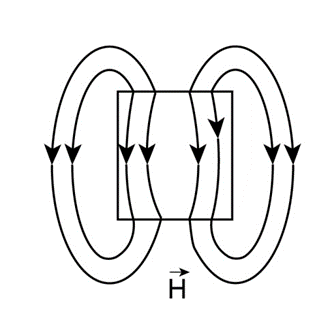

Draw the circuit diagram of for the bar magnet.

Figure 3

We observe that the polarisation and the magnetization fields are similar (in problem 4.17).

Similar to the electric field, the auxiliary field H has a discontinuity at the top and bottom of the cylinder.

Last but not least, the magnetic field resembles the displacement field D鈫�, because the field lines in the electric case loop back on themselves because there are no free charges (like the magnetic field).
