Brake or turn? Figure 6- 44 depicts an overhead view of a car’s path as the car travels toward a wall. Assume that the driver begins to brake the car when the distance to the wall is d = 107 m, and take the car’s mass as m = 1400kg, its initial speed as v0 = 35m/s, and the coefficient of static friction as μs=0.50. Assume that the car’s weight is distributed evenly on the four wheels, even during braking.

(a) What magnitude of static friction is needed (between tires and road) to stop the car just as it reaches the wall?

(b) What is the maximum possible static friction fs,max?

(c) If the coefficient of kinetic friction between the (sliding) tires and the road isμk=0.40, at what speed will the car hit the wall? To avoid the crash, a driver could Select to turn the car so that it just barely misses the wall, as shown in the figure.

(d) What magnitude of frictional force would be required to keep the car in a circular path of radius dand at the given speed v0, so that the car moves in a quarter circle and then parallel to the wall?

(e) Is the required force less than fs.maxso that a circular path is possible?

Short Answer

Expert verified
  1. The magnitude of static friction is 8.0×103N.
  2. The maximum possible static friction is6.9×103N.
  3. The speed at which the car will hit the wall 20m/s.
  4. The magnitude of frictional force is 1.6×104N.
  5. Since Fr > fs,max, no circular path is possible.

Step by step solution

01

Given data

  • Distance to wall, d = 107m.
  • Mass of car, m = 1400kg.
  • Initial speed, v0 = 35m/s.
  • Coefficient of static friction, μs=0.50.
02

To understand the concept

The problem is based on the kinematic equations of motion in which the motion is described at constant acceleration. Also, it deals with the centripetal force. It is a force that makes a body follow a curved path.

Formula:

The velocity in kinematic equations is given by,

v2=v02+2ad

The centripetal force is given by,

Fr=mv02r

03

(a) Calculate the maximum possible static friction fs.max

Using the kinematic equation, the deceleration of the car is calculated as,

v2=v02+2ad

Substitute the values, and we get,

0=35m/s2+2a107ma=-5.72m/s2

Thus, the force of friction required to stop by car is given by,

f=ma

Substitute the values, and we get,

f=1400kg5.72m/s2f≈8.0×103N

Thus, the magnitude of static friction is 8.0×103N.

04

(b) the maximum possible static friction fs,max

The maximum possible static friction is given by,

fs,m=μsmg

Substitute the values, and we get,

fs,m=0.501400kg9.80m/s2fs,m≈6.9×103N.

Thus, the maximum possible static friction is 6.9×103N.

05

(c) Find out at what speed will the car hit the wall if the coefficient of kinetic friction between the (sliding) tires and the road is μk=0.40

If μk=0.40,thenfk=μkmg, and the deceleration is a=-μkg.

Therefore, the speed of the car when it hits the wall is,

v=v02+2ad

Substitute the values, and we get,

v=35m/s2-20.409.8m/s2107mv≈20m/s

Thus, the speed at which the car will hit the wall 20m/s.

06

(d) Calculate the magnitude of frictional force required to keep the car in a circular path of radius d and at the given speed v0, so that the car moves in a quarter circle and then parallels the wall

The force required to keep the motion circular is,

Fr=mv02r

Substitute the values, and we get,

Fr=1400kg35.0m/s2107mFr=1.6×104N

Thus, the magnitude of frictional force is 1.6×104N.

07

(e) Find out if the required force is less than fs,max so that a circular path is possible

From the calculations, we can say that since Fr > fs,max that means no circular path is possible.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Pipe Ahas length Land one open end. Pipe Bhas length 2L and two open ends. Which harmonics of pipe Bhave a frequencythat matches a resonant frequency of pipe A?

Ultrasound, which consists of sound waves with frequencies above the human audible range, can be used to produce an image of the interior of a human body. Moreover, ultrasound can be used to measure the speed of the blood in the body; it does so by comparing the frequency of the ultrasound sent into the body with the frequency of the ultrasound reflected back to the body’s surface by the blood. As the blood pulses, this detected frequency varies.

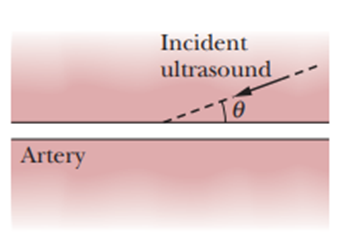

Suppose that an ultrasound image of the arm of a patient shows an artery that is angled atθ=20°to the ultrasound’s line of travel (Fig. 17-47). Suppose also that the frequency of the ultrasound reflected by the blood in the artery is increased by a maximum of5495 H³úfrom the original ultrasound frequency of5.000000 M±á³ú
