The crest of a Parasaurolophus dinosaur skull contains a nasal passage in the shape of a long, bent tube open at both ends. The dinosaur may have used the passage to produce sound by setting up the fundamental mode in it.

(a) If the nasal passage in a certain Parasaurolophus fossil is2.0mlong, what frequency would have been produced?

(b) If that dinosaur could be recreated (as in Jurassic Park), would a person with a hearing range of60Hz t´Ç 20kHzbe able to hear that fundamental mode and, if so, would the sound be high or low frequency? Fossil skulls that contain shorter nasal passages are thought to be those of the female Parasaurolophus.

(c) Would that make the female’s fundamental frequency higher or lower than the male’s?

Short Answer

Expert verified
  1. The frequency that would have been produced is86Hz
  2. Yes, the person would be able to hear the frequency but it would be a low frequency wave.
  3. The female’s frequency would be higher to that of the male.

Step by step solution

01

Identification of given data

  1. Length of the fossilL=2″¾
  2. Velocity of sound,v=343″¾/s
  3. Person with hearing range, 60±á³ú³Ù´Ç 20kHz
02

Significance of frequency

The number of waves passing a fixed location in a unit of time is referred to as frequency in physics.

Assuming the nasal cavity is a pipe open at both ends; we can find the fundamental frequency and answer the remaining questions.

Formula:

The frequency of body with n number of oscillations, f=nv2L …(¾±)

03

(a) Determining the frequency

Using equation (i), we can write the formula for the resonant frequency of the pipe, which is open at both ends. Hence, the frequency that would have been produced is given as:

f=1×343″¾/s2×2″¾(∵n=1forfundamentalfrequency)=85.75 H³ú≈86Hz

Hence, the value of frequency is86Hz

04

(b) Checking whether a person of hearing range 60Hz to 20kHz would hear the frequency

From the above part (a), the frequency is found to be 86Hz.

Hence, the sound would be perceptible as the sound frequency, which is60Hz, is within the hearing range of the person, but it is still a very small frequency. So, the sound of the frequency will be low.

05

(c) Checking whether the fundamental frequency of female be high or low than that of male

The pitch of the sound waves depends on the frequency. Higher the frequency, higher would be the pitch. Since the length of the nasal passage is smaller for the female Parasaurolophus, the frequency would be higher by the above formula. Therefore, the pitch would also be higher.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Suppose that the sound level of a conversation in initially at an angry70dB and then drops to a soothing50dB. Assuming that the frequency of the sound is500Hz, determine the (a)Initial (b) Final sound intensities and(c)Initial and(d)Final sound wave amplitude

The sixth harmonic is set up in a pipe. (a) How many open ends does the pipe have (it has at least one)? (b) Is there a node, antinode, or some intermediate state at the midpoint?

In Fig. 17-25, two point sources S1andS2, which are in phase, emitidentical sound waves of wavelength2.0m. In terms of wavelengths, what is the phase differencebetween the waves arriving atpoint Pif (a)L1=38mandL2=34m, and (b)L1=39mandL2=36m? (c) Assuming that the source separation is much smaller thanL1andL2, what type of interference occurs atin situations (a) and (b)?

In figure, sound wavesand, both of wavelengthλ, are initially in phase and traveling rightwards , as indicated by the two rays. Ways Ais reflected from four surfaces but ends up traveling in its original direction. Waveends in that direction after reflection from two surfaces. Let distance Lin the figure expressed as a multipleq λ:L=±çλ.What are the(a)Smallest (b)Second smallest value of qthat put Aand Bexactly out of phase with each other after the reflection ?

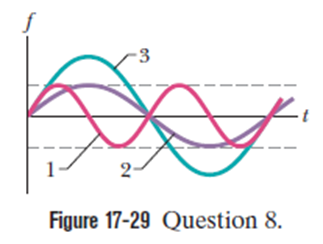

Question: A friend rides, in turn, the rims of three fast merry-go-roundswhile holding a sound source that emits isotropically at a certain frequency. You stand far from each merry-go-round. The frequency you hear for each of your friend’s three rides varies as the merry-go-round rotates. The variations in frequency for the three rides aregiven by the three curves in Fig. 17-29. Rank the curves according to:

(a) the linear speed vof the sound source, (b) the angular speedsvofthe merry-go-rounds, and (c) the radii rof the merry-go-rounds, greatest first
