Chapter 16: Q35P (page 474)

Two sinusoidal waves of the same frequency travel in the same direction along a string. If,ym1=3.0cm,ym2=4.0cm.蠒1=0,and蠒2=蟺/2radwhat is the amplitude of the resultant wave?

Short Answer

Expert verified

The amplitude of the wave is 5.00 cm

Step by step solution

01

The given data

i) Amplitude of first wave,y1m=3.00cmor0.03m

ii) Amplitude of second wave,y2m=4.00cmor0.04m

iii) The first phase,蠒1=0

iv) The second phase,蠒1=蟺/2

02

Understanding the concept of phase

A phasor is a vector that rotates around its tail which is pivoted at the origin of a coordinate system. Herey1mandy2mrepresents the amplitude of the two waves andymrepresents the amplitude of the resultant wave.

03

Calculation of amplitude


The angle made by the phasor of two corresponding waves is 90掳. Using the Pythagorean Theorem we can write,

ym2=y1m2+y2m2=32+42=25ym=5.00cm

So that the resultant amplitude is 5.00cm

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A string that is stretched between fixed supports separated by 75.0 cmhas resonant frequencies of 420and 315 Hz , with no intermediate resonant frequencies. What are (a) the lowest resonant frequency and (b) the wave speed?

String is stretched between two clamps separated by distance L . String B, with the same linear density and under the same tension as string A, is stretched between two clamps separated by distance 4L. Consider the first eight harmonics of stringB. For which of these eight harmonics of B(if any) does the frequency match the frequency of (a) A鈥檚 first harmonic, (b) A鈥檚 second harmonic, and (c)A鈥檚 third harmonic?

A string oscillates according to the equationy'=(0.50cm)sin[(蟺3cm-1)x]cos[(40蟺蝉-1)t]What are the (a) amplitude and (b) speed of the two waves (identical except for direction of travel) whose superposition gives this oscillation? (c) What is the distance between nodes? (d) What is the transverse speed of a particle of the string at the positionx=1.5cmwhent=98s?

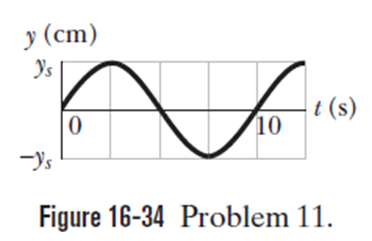

A sinusoidal transverse wave of wavelength 20cmtravels along a string in the positive direction of anaxis. The displacement y of the string particle at x=0is given in Figure 16-34 as a function of time t. The scale of the vertical axis is set byys=4.0cmThe wave equation is to be in the formy(x,t)=ymsin(kx卤蝇迟+蠒). (a) At t=0, is a plot of y versus x in the shape of a positive sine function or a negative sine function? (b) What isym, (c) What isk,(d) What is蝇, (e) What is蠁 (f) What is the sign in front of蝇, and (g) What is the speed of the wave? (h) What is the transverse velocity of the particle at x=0when t=5.0 s?
