Use the wave equation to find the speed of a wave given in terms of the general function: h(x,t)

localid="1660990709658" y(x,t)=(4.00mm)h[(30m-1)x+(6.0s-1)t].

Short Answer

Expert verified

The speed ofthe given wave is 0.2 m/s

Step by step solution

01

The given data

The given wave equation, y(x,t)=(4.00)h[(30)x+(6.0)t]

02

Understanding the concept of the wave equation

By comparing the given wave equation with the standard form, we can find the wavenumber and angular velocity. Using these values, we can find the speed of the wave.

Formula:

The general expression of the wave, yx,t=ymsinkx-Ó¬t (i)

The speed of the wave, v=Ó¬/k (ii)

Here, yis displacement,ym is the amplitude of the wave, kis the angular wave number, Ó¬is the Angular frequency of the wave,t is time.

03

Calculation of the speed of the wave

By comparingthegiven equation withthesolution of the wave equation (i)

y(x,t)=(4.00)h[(30)x+(6.0)t]

We can get,

  1. Angular frequency of the wave isÓ¬=6.0rad/s
  2. Angular wave numberk=30.0m-1

Using the equation (ii), we get the speed of the wave as:

v=6.030.0=0.2m/s

Hence, the value of the speed is 0.2 m/s .

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The following four waves are sent along strings with the same linear densities (xis in meters and tis in seconds). Rank the waves according to (a) their wave speed and (b) the tension in the strings along which they travel, greatest first:

(1)Y1=(3mm)sin(x-3t), (3)y3=(1mm)sin(4x-t),

(2) y2=(6mm)sin(2x-t), (4)y4=(2mm)sin(x-2t).

String is stretched between two clamps separated by distance L . String B, with the same linear density and under the same tension as string A, is stretched between two clamps separated by distance 4L. Consider the first eight harmonics of stringB. For which of these eight harmonics of B(if any) does the frequency match the frequency of (a) A’s first harmonic, (b) A’s second harmonic, and (c)A’s third harmonic?

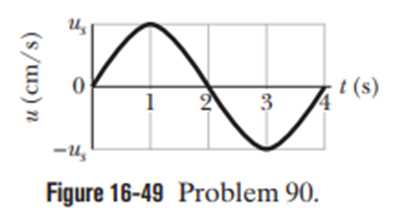

A certain transverse sinusoidal wave of wavelength 20cmis moving in the positive direction of an xaxis. The transverse velocity of the particle at x = 0as a function of time is shown in Fig. 16-49, where the scale of the vertical axis is set by. What are the (a) wave speed, (b) amplitude, and (c) frequency? (d) Sketch the wave between x = 0and x = 20cm at t = 2.0 s.

In a demonstration, a 1.2 kghorizontal rope is fixed in place at its two ends (x = 0 and x = 2.0m)and made to oscillate up and down in the fundamental mode, at frequency 5.0 Hz. At t = 0, the point at x = 1.0mhas zero displacement and is moving upward in the positive direction of a yaxis with a transverse velocity of 5.0m/s. What are (a) the amplitude of the motion of that point and (b) the tension in the rope? (c) Write the standing wave equation for the fundamental mode.

Energy is transmitted at rateP1by a wave of frequency f1 on a string under tension τ1. What is the new energy transmission rate P2 in terms ofP1(a) if the tension is increased toτ2=4τ1 and (b) if, instead, the frequency is decreased tof2=f1/2?
