Chapter 16: Q10Q (page 471)

If you set up the seventh harmonic on a string, (a) how many nodes are present, and (b) is there a node, antinode, or some intermediate state at the midpoint? If you next set up the sixth harmonic, (c) is its resonant wavelength longer or shorter than that for the seventh harmonic, and (d) is the resonant frequency higher or lower?

Short Answer

Expert verified
  1. For the seventh harmonic, there are 鈥榚ight鈥� nodes.
  2. There willbe an鈥榓ntinode鈥� at the midpoint.
  3. For the sixth harmonic, there are 鈥榮even鈥� nodes.
  4. There will be a 鈥榥ode鈥� at the midpoint.

Step by step solution

01

Given

The set up has the seventh harmonic on a string

02

Determining the concept

Determine the number of nodes by knowing the number of harmonics of the standing wave.

03

(a) Determining the number of nodes for the seventh harmonic

Determine the number of nodes for the sixth and seventh harmonic as, for the nth harmonic there are (n+1) nodes. Also, for an even number of harmonics, there is 鈥榥ode鈥� at the midpoint and for the odd number of harmonic; there is 鈥榓ntinode鈥� at the midpoint.

for the nth harmonic, there are (n+1) number of nodes. So, for the seventh harmonic there will be eight nodes.

Hence, for the seventh harmonic, there

04

(b) Determining is there a node, antinode or some intermediate state at the midpoint of the seventh harmonic

For an even number ofharmonics, there is 鈥榥ode鈥� at the midpoint and for the odd number of harmonic, there is 鈥榓ntinode鈥� at the midpoint.

So, for the seventh (odd) harmonic, there is an antinode at the midpoint.

Hence, there will be an 鈥榓ntinode鈥� at the midpoint.

05

(c) Determining the number of nodes for the sixth harmonic

Using similar logic of part a), for the sixth harmonic, there are 鈥楽even鈥� nodes.

Hence, for the sixth harmonic, there are 鈥榮even鈥� nodes

06

(d) Determining is there a node, antinode or some intermediate state at the midpoint of the sixth harmonic

Applying the same logic of part b), thereis a鈥榥ode鈥� at the midpoint.

Hence, there willbe a鈥榥ode鈥� at the midpoint.

Therefore, determine the number of nodes by knowing the number of harmonics of the standing wave.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

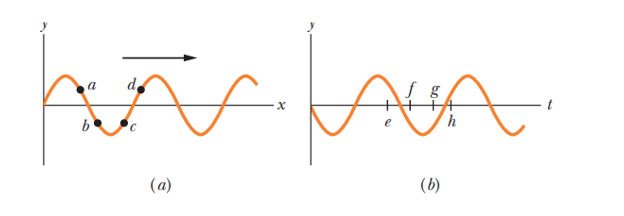

Figure 16-25agives a snapshot of a wave traveling in the direction of positive xalong a string under tension. Four string elements are indicated by the lettered points. For each of those elements, determine whether, at the instant of the snapshot, the element is moving upward or downward or is momentarily at rest. (Hint:Imagine the wave as it moves through the four string elements, as if you were watching a video of the wave as it traveled rightward.) Figure 16-25bgives the displacement of a string element located at, say, x=0as a function of time. At the lettered times, is the element moving upward or downward or is it momentarily at rest?

If a transmission line in a cold climate collects ice, the increased diameter tends to cause vortex formation in a passing wind. The air pressure variations in the vortexes tend to cause the line to oscillate (gallop), especially if the frequency of the variations matches a resonant frequency of the line. In long lines, the resonant frequencies are so close that almost any wind speed can set up a resonant mode vigorous enough to pull down support towers or cause the line to short outwith an adjacent line. If a transmission line has a length of 347 m, a linear density of 3.35 kg/m, and a tension of 65.2 MN. What are (a) the frequency of the fundamental mode and (b) the frequency difference between successive modes?

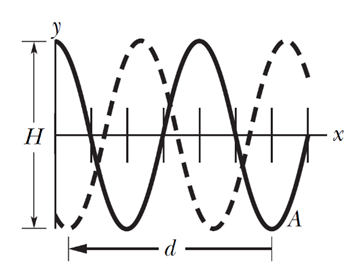

Two sinusoidal waves with the same amplitude of 9.00 mmand the same wavelength travel together along a string that is stretched along anaxis. Their resultant wave is shown twice in Figure, as valleyAtravels in the negative direction of the xaxis by distance d=56.0 cmin 8.0 ms. The tick marks along the axis are separated by 10cm, and heightHis 8.0 mm. Let the equation for one wave be of the fory(x,t)=ymsin(kx卤蝇迟+蠁1), where蠁1=0and you must choose the correct sign in front of蝇. For the equation for the other wave, what are (a)What isym, (b)What isk, (c)What is蝇, (d)What is蠁2, and (e)What is the sign in front of蝇?
