When the temperature of a copper coin is raised by 100OC, its diameter increases by 0.18%.To two significant figures, give the percent increase in

(a) The area of a face,

(b) The thickness,

(c) The volume, and

(d) The mass of the coin.

(e) Calculate the coefficient of linear expansion of the coin.

Short Answer

Expert verified
  1. Percent increase in the area of a face is 0.36%
  2. Percent increase in the thickness is 0.18%
  3. Present increase in the volume is 0.54%
  4. Mass does not depend on thermal expansion.
  5. Coefficient of linear expansion of the coin is1.8×10-6/Co

Step by step solution

01

The given data

Initial increase in diameter is by ∆DD=0.18%atdata-custom-editor="chemistry" ∆T=100oC

02

Understanding the concept of thermal expansion

When an object's temperature changes, it expands and grows larger, a process known as thermal expansion. Thermal expansion can occur due to an increase in temperature. For the given problem, we have to use the formula for linear expansion to calculate the thermal expansion coefficient. Mass does not depend on thermal expansion.

Formula:

The linear expansion of a body,∆L=³¢Î±âˆ†T …(¾±)

Where,αPb is the coefficient of linear expansion of body, L is length and∆T is change in temperature

The area of a coin of or radius, R or diameter, D,

A=Ï€¸é2A=Ï€D22 …(¾±¾±)

03

(a) Calculation of percent increase in area of a face

As we differentiate the equation (ii) by D, we can get

dAdt=2Ï€¶Ù4dA=Ï€¶ÙdD2

Using the equation (ii) for area, we can get, the above equation as:

dAA=2dDD

In terms of∆,we can write,

∆AA=2∆DD

Since area is a two dimensional quantity, so from the above equation, we can conclude that the area increases by the factor 2 i.e. the area increases by2×0.18%=0.36%

Hence, the percent increase in area of the face is 0.36%

04

(b) Calculation of percent increase in thickness

Since thickness is a one dimensional quantity, so, if 0.18% is the increase in diameter, then 0.18% is the increase in its thickness.

05

(c) Calculation of percent increase in volume

If the linear increase in diameter is 0.18%, then the volume increase is three times of that result, so, Volume increase is given by: 3×0.18%=0.54%

Hence, the percent increase in volume is 0.54%

06

(d) Calculation of percent increase in mass

From the formula of thermal expansion of equation (i), we can conclude that the mass is independent of thermal expansion i.e. total mass always remains constant in expansion.

07

(e) Calculation of coefficient of the linear expansion

Fromthelinear expansion formula of equation (i), we can calculatethethermal expansion coefficient as:

α=∆DD∆T

where,

role="math" localid="1661876703196" ∆DD=0.18=0.18×10-2

is the percentage increase in diameter.

And fordata-custom-editor="chemistry" ∆T=100oC

role="math" localid="1661876748017" α=0.18×10-2100oC=1.8×10-5/Co

Hence, the coefficient of linear expansion isrole="math" localid="1661876763362" 1.8×10-5/Co

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

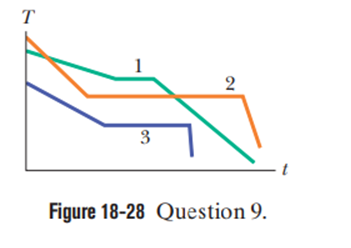

Three different materials of identical mass are placed one at a time in a special freezer that can extract energy from a material at a certain constant rate. During the cooling process, each material begins in the liquid state and ends in the solid state; Fig. 18-28 shows the temperature Tversus time t. (a) For material 1, is the specific heat for the liquid state greater than or less than that for the solid state? Rank the materials according to (b) freezing point temperature, (c) specific heat in the liquid state, (d) specific heat in the solid state, and (e) heat of fusion, all greatest first.

The initial length L, change in temperature â–³T, and change in length â–³Lof four rods are given in the following table. Rank the rods according to their coefficients of thermal expansion, greatest first.

Rod L (m) △T(C°) △L(m)
abcd 2124 1020105 4×10-44×10-48×10-44×10-4

Question: A sampleAof liquid water and a sampleBof ice, of identical mass, are placed in a thermally insulated container and allowed to come to thermal equilibrium. Figure 18-25ais a sketch of the temperatureTof the samples versus timet. (a) Is the equilibrium temperature above, below, or at the freezing point of water? (b) In reaching equilibrium, does the liquid partly freeze, fully freeze, or undergo no freezing? (c) Does the ice partly melt, fully melt, or undergo no melting?

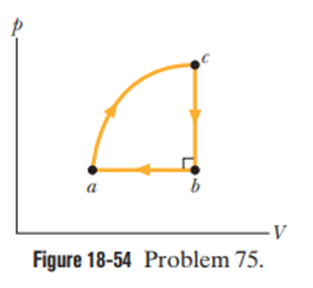

Figure 18-54 displays a closed cycle for a gas. From cto b, 40Jis transferred from the gas as heat. From bto a, 130Jis transferred from the gas as heat, and the magnitude of the work done by the gas is 80J. From atoc, 400Jis transferred to the gas as heat. What is the work done by the gas from atoc? (Hint:You need to supply the plus and minus signs for the given data.)
