A rhinoceros beetle rides the rim of a horizontal disk rotating counterclockwise like a merry-go-round. If the beetle then walks along the rim in the direction of the rotation, will the magnitudes of the following quantities (each measured about the rotation axis) increase, decrease, or remain the same (the disk is still rotating in the counterclockwise direction): (a) the angular momentum of the beetle–disk system, (b) the angular momentum and angular velocity of the beetle, and (c) the angular momentum and angular velocity of the disk? (d) What are your answers if the beetle walks in the direction opposite the rotation?

Short Answer

Expert verified

a) Angular momentum of the beetle-disk system will remain the same.

b) Angular momentum and angular velocity of the beetle will increase.

c) Angular momentum and angular velocity of the disk will decrease.

d) When the beetle walks in the opposite direction of the rotation, the angular momentum of the beetle-disk system will remain the same, its angular momentum and angular velocity of the beetle will decrease while that of the disk will increase.

Step by step solution

01

Step 1: Given

Horizontal disk rotating counter-clockwise with a beetle on it.

02

Determining the concept

Use the concept of angular momentum and angular velocity. There is a proportional relation between the angular velocity and linear velocity.

The formula is as follows:

L=IÓ¬

WhereL is angular momentum, I is a moment of inertia and Ó¬is angular velocity.

03

(a) Determining the angular momentum of the beetle-disk system

When a beetlewalks along with a disk in the direction of rotation, it will have a little more angular velocity but it will decrease the angular velocity of the disk, so finally, the angular momentum of the beetle and disk remains the same.

04

(b) Determining the angular momentum and angular velocity of the beetle

In this case, if seen separately, beetles will have more angular velocity and hence the angular momentum. But for a disk, the angular velocity decreases little and so does the angular momentum.

05

(c) Determining the angular momentum and angular velocity of the disk

If the beetle walks opposite the direction of rotation the angular momentum and velocity of the beetle will decrease while the angular momentum and angular velocity of the disk will increase.

06

(d) Determining what will happen when the beetle walks in the opposite direction of the rotation

Whether the angular momentum and angular velocity increase, decrease, or remain the same can be found depending on the direction of the motion of the object.

When the beetle walks in the opposite direction of the rotation, the angular momentum of the beetle-disk system will remain the same, its angular momentum and angular velocity of the beetle will decrease while that of the disk will increase.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A man stands on a platform that is rotating (without friction) with an angular speed of 1.2rev/s;his arms are outstretched and he holds a brick in each hand. The rotational inertia of the system consisting of the man, bricks, and platform about the central vertical axis of the platform is localid="1660979279335" 6.0kg.m2.If by moving the bricks the man decreases the rotational inertia of the system to 2.0 kg.m2.

(a) What are the resulting angular speed of the platform?

(b) What is the ratio of the new kinetic energy of the system to the original kinetic energy?

(c) What source provided the added kinetic energy?

Question: In Figure, a solid ball rolls smoothly from rest (starting at height H = 6.0 m ) until it leaves the horizontal section at the end of the track, at height h = 2.0 m. How far horizontally from point Adoes the ball hit the floor?

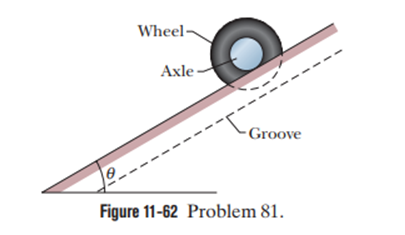

A uniform wheel of mass 10.0 kgand radius 0.400 mis mounted rigidly on a mass less axle through its center (Fig. 11-62). The radius of the axle is 0.200 m, and the rotational inertia of the wheel–axle combination about its central axis is0.600 kg.m2. The wheel is initially at rest at the top of a surface that is inclined at angleθ=30.0°. with the horizontal; the axle rests on the surface while the wheel extends into a groove in the surface without touching the surface. Once released, the axle rolls down along the surface smoothly and without slipping. When the wheel–axle combination has moved down the surface by 2.00 m, what are (a) its rotational kinetic energy and (b) its translational kinetic energy?

In Fig. 11-60, a constant horizontal force of magnitude 12 N is applied to a uniform solid cylinder by fishing line wrapped around the cylinder. The mass of the cylinder is 10kg, its radius is 0.10 m, and the cylinder rolls smoothly on the horizontal surface. (a) What is the magnitude of the acceleration of the center of mass of the cylinder? (b) What is the magnitude of the angular acceleration of the cylinder about the center of mass? (c) In unit-vector notation, what is the frictional force acting on the cylinder?

At the instant of Figure, a 2.0kg particle Phas a position vector râ‡¶Ä of magnitude 3.0mand angle θ1=45o and a velocity vectorvâ‡¶Ä of magnitude 4.0m/sand angleθ2=300. ForceF⇶Ä, of magnitude 2.0Nand angleθ3=30oacts on P. All three vectors lie in the xy plane. About the origin, (a) What is the magnitude of the angular momentum of P? (b) What is the direction of the angular momentum of P? (c) What is the magnitude of the torque acting on P? (d)What is the direction of the torque acting on P?
