A certain spring is found not to conform to Hooke’s law. The force (in newtons) it exerts when stretched a distance x(in meters) is found to have magnitude 52.8x +38.4x2in the direction opposing the stretch. (a) Compute the work required to stretch the spring from x =0.500mto x = 1.00m. (b) With one end of the spring fixed, a particle of mass 2.17 kgis attached to the other end of the spring when it is stretched by an amount x = 1.00m. If the particle is then released from rest, what is its speed at the instant the stretch in the spring is x = 0.500m? (c) Is the force exerted by the spring conservative or nonconservative? Explain.

Short Answer

Expert verified

a. Work required to stretch the string from x = 0.500m to x = 1.00 m isWspring=31.0J

b. The speed of the particle when stretched from the x = 0.500 m is 5.35 m/s.

c. The spring force is conservative.

Step by step solution

01

Given

Force applied by the spring when stretched for a distance x is F =52.8x+38.4x2

The mass of the particle is m = 2.17 kg

Stretching due to the mass is x = 1.00 m

02

Understand the concept

By finding the integral of force and displacement we can find work done by the spring.

Using the value of work done we can find the velocity of the particle.

UsingW=∆K+∆Uwe can find that the spring force is conservative or non -conservative.

Formula:

W=∫xixfFdxK=12mv2U=mgh

03

(a) Calculate the work required to stretch the spring from x = 0.500m to x = 1.00m.

The work done can be estimated using the formula,

W=∫xixfFdx

Where F is the force and work done is estimated between the points x1 and x2. Therefore,

W=∫xixffdxJ=∫0.51(52.8x+38.4x2)dxJ=∫0.5152.8xdxJ+∫0.5138.4x2dxJ=52.82x20.51J+38.43x20.51J=(26.412-0.52)J+(12.813-0.53)J=31.0J

04

(b) Calculate the speed at the instant the stretch in the spring is x = 0.500m

W=∆K=Kf-Ki

Ki=0since theparticle is released from rest, therefore, the above expression can be written as,

W=kf=12mv2

Rearranging the equation for velocity.

v=2Wm=2×31.0J2.17kg=5.35m/s

05

(c) Explain if the force exerted by the spring is conservative or nonconservative

Force is conservative since work done by the force is independent of the path it followed, it depends on the initial and final position of the particle.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

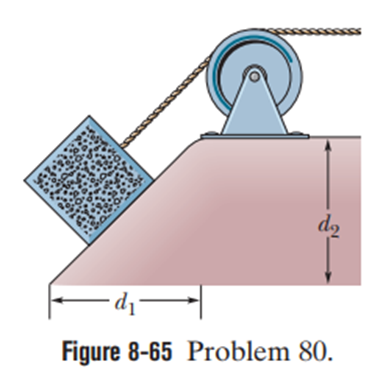

In Fig. 8-65, a 1400 kgblock of granite is pulled up an incline at a constant speed of 1.34 m/sby a cable and winch. The indicated distances are d1=40mandd2=30. The coefficient of kinetic friction between the block and the incline is 0.40. What is the power due to the force applied to the block by the cable?

A worker pushed a 27 kgblock9.2 malong a level floor at constant speed with a force directed32°below the horizontal. If the coefficient of kinetic friction between block and floor was 0.20, what were (a) the work done by the worker’s force and (b) the increase in thermal energy of the block– floor system?

Fasten one end of a vertical spring to a ceiling, attach a cabbage to the other end, and then slowly lower the cabbage until the upward force on it from the spring balances the gravitational force on it. Show that the loss of gravitational potential energy of the cabbage–Earth system equals twice the gain in the spring’s potential energy.

(a) In Problem 5, what is the speed of the flake when it reaches the bottom of the bowl? (b) If we substituted a second flake with twice the mass, what would its speed be? (c) If, instead, we gave the flake an initial downward speed along the bowl, would the answer to (a) increase, decrease, or remain the same?

Figure 8-19 gives the potential energy function of a particle. (a) Rank regions AB, BC, CD, and DE according to the magnitude of the force on the particle, greatest first. What value must the mechanical energyEmecof the particle not exceed if the particle is to be (b) trapped in the potential well at the left, (c) trapped in the potential well at the right, and (d) able to move between the two potential wells but not to the right of point H? For the situation of (d), in which of regions BC, DE, and FG will the particle have (e) the greatest kinetic energy and (f) the least speed?
