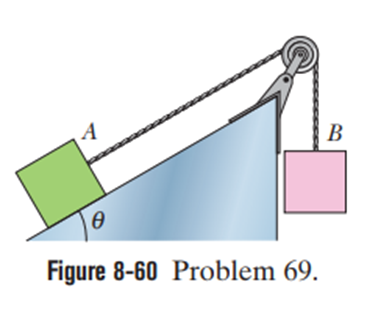

In Fig. 8-60, the pulley has negligible mass, and both it and the inclined plane are frictionless. Block A has a mass of 1.0 kg, block B has a mass of 2.0 kg, and angle θis 30°. If the blocks are released from rest with the connecting cord taut, what is their total kinetic energy when block B has fallen 25 cm?

Short Answer

Expert verified

The total kinetic energy is, Kf=3.7J

Step by step solution

01

Given

i) The mass of the block A is,mA=1.0kg

ii) The mass of the block B is, mB=2.0kg

iii) The angle of inclination is,θ=30°

iv) The block B has fallen,d=25cm=0.25m

02

Determine the formula for the potential and the mechanical energy:

First, we have to find an increase in the height of block A due to block B. By using the change in gravitational potential and applying conservation of mechanical energy, we can find total kinetic energy.

Formula:

i) The change in gravitational potential is,ΔU=-mBgd+mAgh

ii) The conservation of mechanical energy is,ΔEth=ΔK+ΔU

03

Calculate their total kinetic energy when block B has fallen 25 cm

Here, if block B falls vertically, then block A must increase its height by

h=dsinθ⇒h=0.25×sin30⇒h=0.125m

Therefore, the change in gravitational potential energy is given by,

ΔU=-mBgd+mAgh

Applying conservation of mechanical energy,

ΔEth=ΔK+ΔU=0

Hence, the change in kinetic energy is given by,

ΔK=-ΔU

Since, the initial kinetic energy is zero then final kinetic energy is,

Kf=ΔK=-ΔU

⇒Kf=mBgd-mAgh⇒Kf=2.0×9.8×0.25-1.0×9.8×0.125⇒Kf=3.7J
