i) The mass of the bread box is,$m=2.0\mathrm{kg}$

ii) The inclination angle of the box is, $\mathrm{θ}=40°$

iii) The spring constant of the spring is,k =120 N/m

iv) The distance covered by the block is,x =10cm=0.10 m

Use the concept of the energy conservation law and elastic potential energy of the spring. By using Hooke’s law, find the restoring force. To find the height, use trigonometry.According to the law of energy conservation, energy can neither be created, nor be destroyed.

Formulae are as follow:

F =-kx

$$\begin{gathered} U\left(x\right)=\frac{1}{2}k{x}^2 \\ K=\frac{1}{2}m{v}^2 \\ {F}_{net}=ma \end{gathered}$$

Where, Kis kinetic energy,U(x) is potential energy, m is mass, v is velocity, a is an acceleration, x is displacement, k is spring constant and F is force.

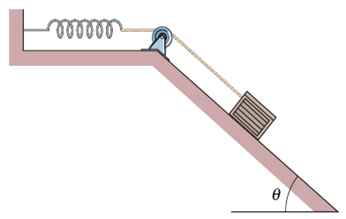

Initially, the box is placed at the height as shown in the figure. At that time, the spring is up stretched. Hence, it has only gravitational potential energy. When it moves down through a distance , the vertical distance covered by the box is $∆y$. By using trigonometry,

$$\begin{gathered} \sin \mathrm{θ}=\frac{∆y}{x} \\ ∆y=x\sin \mathrm{θ} \end{gathered}$$

When the box moves through a distance x down, its gravitational potential energy is converted to kinetic energy and elastic potential energy.

According to the energy conservation law,

$$\begin{gathered} mg\mathrm{Δ}y=\frac{1}{2}m{v}^2+\frac{1}{2}k{x}^2 \\ mg(x\sin \mathrm{θ})=\frac{1}{2}m{v}^2+\frac{1}{2}k{x}^2 \\ \frac{1}{2}m{v}^2=mg\left(xsin\mathrm{θ}\right)-\frac{1}{2}k{x}^2 \\ {v}^2=\frac{2mg(x\sin \mathrm{θ})-k{x}^2}{m} \\ v=\sqrt{\frac{2mg\left(x\sin \mathrm{θ}\right)-k{x}^2}{m}} \\ v=\sqrt{\frac{2×2.0\mathrm{kg}×9.8{\displaystyle \frac{\mathrm{m}}{{\mathrm{s}}^2}}×0.10\mathrm{m}×\sin 40-120\mathrm{N}/\mathrm{m}×{\left(0.10\mathrm{m}\right)}^2}{2.0\mathrm{kg}}} \\ v=0.81\mathrm{m}/\mathrm{s} \end{gathered}$$

Hence, the speed of the box is v=0.81 m/s.

The box is released along the inclined plane. Hence, the gravitational potential energy is converted to elastic potential energy. Consider, the distance covered by the box during this motion as d . According to the energy conservation law,

$$\begin{gathered} mg\mathrm{Δ}y=\frac{1}{2}k{d}^2 \\ mg(dsin\mathrm{θ})=\frac{1}{2}k{d}^2 \\ mg(\sin \mathrm{θ})=\frac{1}{2}kd \\ d=\frac{2mg(\sin \mathrm{θ})}{k} \\ d=\frac{2×2.0kg×9.8{\displaystyle \frac{m}{s^2}}×\sin 40}{120N/m} \\ d=0.21m \end{gathered}$$

Hence, the distance covered by the box along the inclined plane is x = 0.21 m.

The motion of the box is downhill. Hence, the restoring force acts on the box in the uphill direction. According to the figure, the component of the gravitational force is acting in the downward direction along the inclined plane. Hence, according to Newton’s second law, the net force acting on the box is,

$F_{net}=ma$

$F-mg\sin \mathrm{θ}=ma$ (i)

According to the Hooke’s law,

F =kx

Here,x =d

Equation (i) becomes as,

$$\begin{gathered} kd-mg\sin \mathrm{θ}=ma \\ a=\frac{kd-mg\sin \mathrm{θ}}{m} \\ a=\frac{120{\displaystyle \frac{N}{m}}×0.21m-2.0kg×9.8{\displaystyle \frac{m}{s^2}}×\sin 40}{2.0kg} \\ a=6.3\mathrm{m}/{\mathrm{s}}^2 \end{gathered}$$

Hence, the magnitude of the acceleration is $a=6.3\mathrm{m}/{\mathrm{s}}^2$.

The direction of the net force is uphill. Hence, according to Newton’s second law, the acceleration of the box is uphill.

Hence, the direction of the acceleration is uphill.

The speed of the box and the distance covered by the box can be found by using the concept of conservation of energy and elastic potential energy. The acceleration of the box can be found by using Newton’s second law
