A 20 kg0object is acted on by a conservative force given by F=-3.0x-5.0x2, with Fin newton and x in meters. Take the potential energy associated with the force to be zero when the object is at x=0. (a) What is the potential energy of the system associated with the force when the object is at x=2.0 m? (b) If the object has a velocity of 4.0 m/sin the negative direction of the x-axis when it is at x=5.00 m, what is its speed when it passes through the origin? (c) What are the answers to (a) and (b) if the potential energy of the system is taken to be -8.0 Jwhen the object is at x=0?

Short Answer

Expert verified

a) The P.E. of the system associated with the force when the object is at x=2.0 m is 19.4 J

b) The speed of the object when it passes through the origin is 6.37 m/s

c) Answer for part a) will be 11.4 J and that for part b) will be 6.37 m/s when P.E. of the system when the object is at x=0 is-8.0 J.

Step by step solution

01

The given data

The mass of an object is m=20 kg

The force applied to an object isF=-3.0x-5.0x2

The potential energy of the object at x=0 is,U0=0J

The velocity of an object is v=4.0 m/s in the negative direction of the x-axis when it is at x=0

02

Understanding the concept of work done

Using the formula for work done on a system by an external force, we can find the stopping distance of an automobile.

Formulae:

The potential energy or work done by the system,U(x)=∫F(x)dx (1)

The total energy of the system,E=12mv2+U(x) (2)

From the law of conservation of energy,

Ei=Ef (3)

03

a) Calculation of the potential energy of the system

We are given that the force applied to an object isF=-3.0x-5.0x2

Then P.E associated with it is using equation (1) is given as:

Ux=∫xixf-3.0x-5.0x2dx=-3.0x22-5.0x33-U0=3.0x22+5.0x33+U0

Ux=2.0m=3.02.0m22+5.02.0m33+0=19.4J

Therefore, the P.E. of the system associated with the force when the object is at x=2.0 m is equal to 19.4J

04

b) Calculation of the speed of the object

But, it has the speed ofv=4.0 msatx=5.0 m

From equation (3), we can get the initial speed of the object as follows:

Ei(x=0 m)=Ef(x=5 m)12mv02+U0=12mv2+U(x=5 m)1220kgv02+01220kg4.0ms2+3.05m22+5.05m33+0v02=40.58m22sv0=6.37ms

Therefore, the speed of an object when it passes through the origin is 6.37 m/s

05

c) Calculation of the parts (a) and (b) for potential energy -8.0J

From part a), we can write that,

Ux=2m=3.02m22+5.02m33+U0

IfU0=-8Jthen, the new potential energy is given as:

Ux=2m=3.02m22+5.02m33-8J=11.4J

v0will be the same as before becauseU0on both sides of the equation part (b) cancels out.

So it is independent ofU0.

Therefore, the answer for part a) will be 11.4 J and that for part b) will be 6.37 m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Fig. 8-21, a small, initially stationary block is released on a frictionless ramp at a height of 3.0 m. Hill heights along the ramp are as shown in the figure. The hills have identical circular tops, and the block does not fly off any hill. (a) Which hill is the first the block cannot cross? (b) What does the block do after failing to cross that hill? Of the hills that the block can cross, on which hill-top is (c) the centripetal acceleration of the block greatest and (d) the normal force on the block least?

Figure 8-20 shows one direct path and four indirect paths from point i to point f. Along the direct path and three of the indirect paths, only a conservative forceFcacts on a certain object. Along the fourth indirect path, bothFcand a nonconservative forceFncact on the object. The change ∆Emecin the object’s mechanical energy (in joules) in going from i to f is indicated along each straight-line segment of the indirect paths. What is∆Emec(a) from i to f along the direct path and (b) due to Fncalong the one path where it acts?

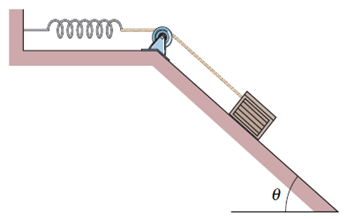

A 2.0 kgbreadbox on a frictionless incline of angle θ=40°is connected, by a cord that runs over a pulley, to a light spring of spring constantk=120N/m, as shown in Figure. The box isreleased from rest when the spring is unstretched. Assume that the pulley is mass less and frictionless. (a) What is the speed of the box when it has moved 10 cmdown the incline? (b) How far down the incline from its point of release does the box slide before momentarily stopping, and what are the (c) magnitude (d) direction (Up or down the incline) of the box’s acceleration at the instant the box momentarily stops?

A playground slide is in the form of an arc of a circle that has a radius of 12 m. The maximum height of the slide ish = 4.0 m, and the ground is tangent to the circle (Fig. 8-70). A 25 kgchild starts from rest at the top of the slide and has the speed of 6.2m/sat the bottom. (a) What is the length of the slide? (b) What average frictional force acts on the child over this distance? If, instead of the ground, a vertical line through the top of the slide is tangent to the circle, what is (c) the length of the slide and (d) the average friction on the child?

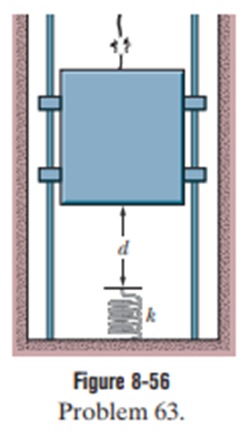

The cable of the 1800 kgelevator cabin Figure snaps when the cab is at rest at the first floor, where the cab bottom is a distance d = 3.7 m above a spring of spring constant k = 0.15 MN/m . A safety device clamps the cab against guide rails so that a constant frictional force of 4.4 kNopposes the cab’s motion. (a) Find the speed of the cab just before it hits the spring. (b) Find the maximum distance xthat the spring is compressed (the frictional force still acts during this compression). (c) Find the distance that the cab will bounce back up the shaft. (d) Using conservation of energy, find the approximate total distance that the cab will move before coming to rest. (Assume that the frictional force on the cab is negligible when the cab is stationary.)
