Question: An oscillator consists of a block attached to a spring (k = 400 N/m). At some time t, the position (measured from the system’s equilibrium location), velocity, and acceleration of the block are, x =0.100 m,v = 13.6 m and a = 123 m/s2. Calculate (a) the frequency of oscillation,(b) the mass of the block, and (c) the amplitude of the motion.

Short Answer

Expert verified

Answer:

  1. The frequency of oscillation is 5.58 Hz .
  2. The mass of the block is 0.325 kg.
  3. The amplitude of the motion is 0.400 m.

Step by step solution

01

The given data

  1. Spring constant of the spring, k= 400 N/m
  2. Position at time t, x =0.100 m
  3. Velocity at time t, v = - 13.6 m
  4. Acceleration at time t, a = 123 m/s2
02

Understanding the concept of oscillatory motion

Using the formula of acceleration of SHM and using the relation between angular velocity and frequency, we can find the frequency of oscillation.

Using the formula of angular velocity in terms of spring constant and mass, we can find the mass of the block. Then, using the law of energy conservation, we can find the amplitude of the motion.

Formula:

The acceleration of a body in oscillation,

a=-Ó¬2x (i)

The angular frequency of a body in oscillation,

Ó¬=2Ï€f (ii)

The angular frequency of a spring,

Ó¬=k/m (iii)

The potential energy of a body in oscillation,

U=12kxm2 (iv)

The kinetic energy of a body in motion,

K=12mv2 (v)

03

(a) Calculation of frequency of oscillation

Using equation (i) and the given values, we get the angular frequency as:

Ӭ=-ax(∵a=-123m/s2&x=0.100m)=--123ms20.100m=35.07rad/s

Again using the equation (ii), we get the frequency as:

f=Ó¬2Ï€=35.07rads2Ï€=5.58Hz

Therefore, thefrequency of oscillation is 5.58 Hz

04

(b) Calculation for the mass of the oscillator

Using equation (iii), we get the mass as:

m=kӬ2(∵k=400N/m&Ӭ=35.07rad/s)=400N/m35.07rads2=0.325kg

Therefore, the mass of the block is 0.325 Kg

05

(c) Calculation of amplitude of the motion

Using equation (iv) & (v), the total energy of the system can be given as:

12kx2+12mv2

Therefore, according to energy conservation law,

12kxm2=12kx2+12mv2xm2=x2+mkv2xm=x2+mkv2=0.100m2+0.325kg400N/m-13.6ms2=0.400m

Therefore, the amplitude of the motion is 0.400 m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The tip of one prong of a tuning fork undergoes SHM of frequency 1000 Hzand amplitude 0.40 mm. For this tip, what is the magnitude of the (a) maximum acceleration, (b) maximum velocity, (c) acceleration at tip displacement 0.20 mm, and (d) velocity at tip displacement0.20 mm?

A 0.10 kgblock oscillates back and forth along a straight line on a frictionless horizontal surface. Its displacement from the origin is given byx=(10cm)cos[(10rad/s)t+ττ/2rad]. (a) What is the oscillation frequency? (b) What is the maximum speed acquired by the block? (c) At what value of x does this occur? (d) What is the magnitude of the maximum acceleration of the block? (e) At what value of x does this occur? (f) What force, applied to the block by the spring, results in the given oscillation?

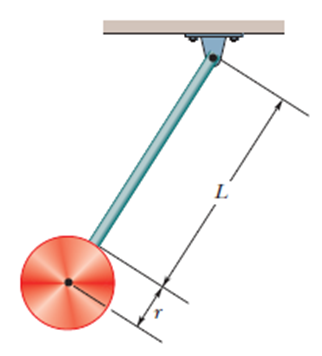

A grandfather clock has a pendulum that consists of a thin brass disk of radius r = 15.00 cm and mass 1.000 kg that is attached to a long thin rod of negligible mass. The pendulum swings freely about an axis perpendicular to the rod and through the end of the rod opposite the disk, as shown in Fig. 15-5 If the pendulum is to have a period of 2.000 s for small oscillations at a place where g=9.800m/s2,what must be the rod length L to the nearest tenth of a millimeter?

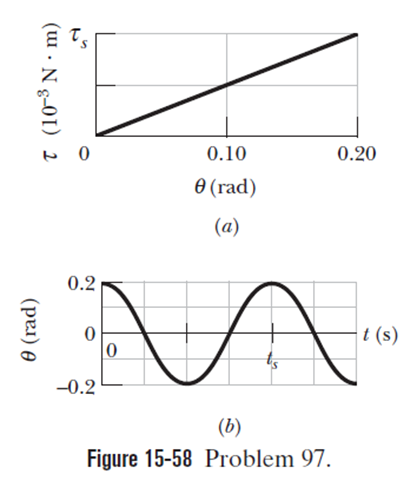

A torsion pendulum consists of a metal disk with a wire running through its center and soldered in place. The wire is mounted vertically on clamps and pulled taut. 15-58a Figuregives the magnitude τof the torque needed to rotate the disk about its center (and thus twist the wire) versus the rotation angle θ. The vertical axis scale is set by τs=4.0×10-3N.m.=.The disk is rotated to θ=0.200rad and then released. Figure 15-58bshows the resulting oscillation in terms of angular position θversus time t. The horizontal axis scale is set by ts=0.40s. (a) What is the rotational inertia of the disk about its center? (b) What is the maximum angular speedof dθ/dtthe disk? (Caution: Do not confuse the (constant) angular frequency of the SHM with the (varying) angular speed of the rotating disk, even though they usually have the same symbol. Hint: The potential energy U of a torsion pendulum is equal to 12kθ2, analogous to U=12kx2for a spring.)
