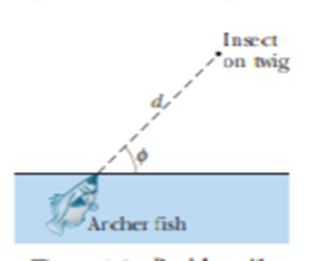

Upon spotting an insect on a twig overhanging water, an archer fish squirts water drops at the insect to knock it into the water (Figure). Although the fish sees the insect along a straight-line path at angle ϕand distance d , a drop must be launched at a different angle θ0if its parabolic path is to intersect the insect. Ifϕ=36°and d=0.900m , what launch angle θ0 is required for the drop to be at the top of the parabolic path when it reaches the insect?

Short Answer

Expert verified

The launch angle θ0=55.5o

Step by step solution

01

Given information

It is given that,

Ï•=36.0o

02

Determining the concept

The problem deals with the projectile motion of an object. The projectile motion of an object is the motion of an object thrown into the air, subject to the acceleration due to gravity Though the drop is launched at a different angle, its launching point is the same as that of the archerfish. So, they have to travel the same distance. Using this, the angle can be found.

Formulae:

The range of the projectile is given by,

R=v02sinn2θ0g

Maximum height is given by,

Hmax=v02sin2θ02g

03

Determining the launch angle θ0

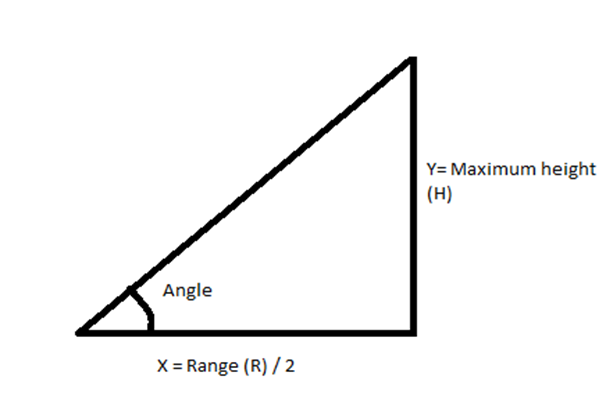

From the diagram,

Y=H=v02sin2θ02gx=R2=v02sin2θ02×gtanϕ=YHtanϕ=v02sin2θ02gv02sin2θ02×gtanϕ=12×sinθ0cosθ0tanϕ=12×tanθ0tanϕ=2×tanϕθ0=tan-1(2×tanϕ)θ0=tan-1(2×tan36.0)θ0=tan-1(1.453)

Thus,

θ0=55.46≈55.5°
