Figure 4-21 shows the path taken by a skunk foraging for trash food, from initial point i. The skunk took the same time Tto go from each labeled point to the next along its path. Rank points a, b, and caccording to the magnitude of the average velocity of the skunk to reach them from initial point, greatest first. initial point i, greatest first.

Short Answer

Expert verified

Rank is c=a>b

Step by step solution

01

Given information

T-Timetotravelbetweeneachlabeledpoint.

1block=1unitofdisplacement.

02

To understand the concept

The problem deals with the average velocity which is the change in position or displacement divided by the time intervals in which the displacement occurs. Average velocity can be calculated by using displacement and time. Displacement is calculated by measuring change in position of object.

Formulae:

Average velocity is given by,

vavg=DT

Herevavg is the average velocity D, is the distance travelled andT is the time taken.

03

To rank the points a b c according to the average velocity

Point i to a:

D=1 block

Time=1T

Hence

vavg=1T......1

Point i to b:

D=1 block

Time=2T

Hence,

v=12T鈥︹ (2)

Point i to c

D =3block

Time=3T

Hence,

vavg=33T

vavg=1T鈥︹ (3)

Therefore, from these three results we can say that, rank according to average velocity would be Vc=Va>Vb.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A baseball is hit at Fenway Park in Boston at a point 0.762 mabove home plate with an initial velocity of 33.53 m/sdirected 55.0above the horizontal. The ball is observed to clear the 11.28-m-high wall in left field (known as the 鈥済reen monster鈥)5.00 s after it is hit, at a point just inside the left-field foulline pole. Find (a) the horizontal distance down the left-field foul line from home plate to the wall; (b) the vertical distance by which the ball clears the wall; (c) the horizontal and vertical displacements of the ball with respect to home plate 0.500 sbefore it clears the wall.

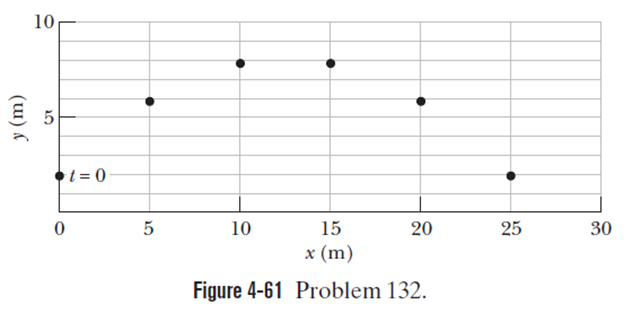

A track meet is held on a planet in a distant solar system. A shot-putter releases a shot at a point 2.0mabove ground level. A stroboscopic plot of the position of the shot is shown in Fig. 4-61, where the readings areapart and the shot is released at time t = 0. (a) What is the initial velocity of the shot in unit-vector notation? (b) What is the magnitude of the free-fall acceleration on the planet? (c) How long after it is released does the shot reach the ground? (d) If an identical throw of the shot is made on the surface of Earth, how long after it is released does it reach the ground?

A cannon located at sea level fires a ball with initial speed82m/sand initial anglerole="math" localid="1657023432500" 450The ball lands in the water after traveling a horizontal distancerole="math" localid="1657023530149" 686m. How much greater would the horizontal distance have been had the cannon beenrole="math" localid="1657023595972" 30mhigher?

Aprotoninitiallyhasv=4.0i^-2.0j^+3.0k^andthen4.0slaterhasv=4.0i^-2.0j^+3.0k^(inmeterspersecond).Forthat,4.0swhatare(a)theprotonsaverageaccelerationaavginunitvectornotation.(b)themagnitudeaavgofand(c)theanglebetweenaavgandthepositivedirectionoftheaxis.

A frightened rabbit moving at 6.0 m/sdue east runs onto a large area of level ice of negligible friction. As the rabbit slides across the ice, the force of the wind causes it to have a constant acceleration of1.40m/s2, due north. Choose a coordinate system with the origin at the rabbit鈥檚 initial position on the ice and the positive xaxis directed toward the east. In unit-vector notation, what are the rabbit鈥檚 (a) velocity and (b) position when it has slide for 3.00 s?
