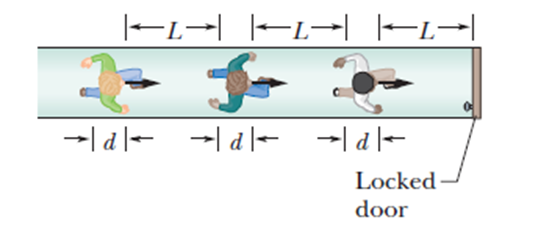

Figure shows a general situation in which a stream of people attempts to escape through an exit door that turns out to be locked. The people move toward the door at speed Vs=3.5m/s, are each d=0.25 m in depth, and are separated by L=1.75 m. The arrangement in figure 2-24 occurs at time t=0. (a) At what average rate does the layer of people at door increase? (b) At what time does the layer’s depth reach 5 m? (The answers reveal how quickly such a situation becomes dangerous)

Figure 2-24Problem 8

Short Answer

Expert verified
  1. Average rate of increase in the layer of people is 0.50 m/s.
  2. Time when layer depth reaches 5m in 10 s .

Step by step solution

01

Given data

Speed of the people toward the door ,vs=3.5m/s .

The initial depth of layer, d=0.25m.

The separation between the layers, L=1.75m.

02

Understanding the speed

Speed may be defined as the time rate of change in distance.The time taken for each person to move a distance L with speed is used to find the rate of increase of layer of people.

The expression for the speed is given as follows:

Speed=DistanceTime

03

(a) Determination of the rate of increase of the layer of people

The amount of time it takes for each person to move a distance L with speed Vsis calculated as follows:

Δt=Lvs=1.75m3.5m/s=0.5s

With each additional person, the depth increases by one body depth d.

Therefore, the rate of increase of the layer of people is calculated as follows:

R=dΔt=0.250.5=0.50m/s

Hence, the average rate of increase in the layer of people is .0.50m/s

04

(b) Determination of the time at which the depth reaches 5.0 m.

The amount of time required to reach a depth of D=5.0 m is calculated as follows:

Δt=DR=5.0m0.5m/s=10s

Hence, the time required when the layer depth reaches 5 m is 10 s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Figure 2-19 is a graph of a particle’s position along an x axis versus time. (a) At timet=0, what is the sign of the particle’s position? Is the particle’s velocity positive, negative, or 0 at (b)t=1s, (c)t=2s, and (d)t=3s? (e) How many times does the particle go through the pointx=0?

A car can be braked to a stop from the autobahn-like speed of 200km/hin 170m. Assuming the acceleration is constant, find its magnitude in (a) SI units and (b) in terms of g. (c) How much time Tbis required for the braking? Your reaction time Tris the time you require to perceive an emergency, move your foot to the brake, and begin the braking. If Tr=400ms, then (d) what is Tbin terms ofTr, and (e) is most of the full time required to stop spent in reacting or braking? Dark sunglasses delay the visual signals sent from the eyes to the visual cortex in the brain, increasingTr. (f) In the extreme case in whichTr is increased by, how much farther does the car travel during your reaction time?

From January 26,1977, to September18,1983, George Meegan of Great Britain walked from Ushuaia, at the southern tip of South America, to Prudhoe Bay in Alaska, covering30600km. In meters per second, what was the magnitude of his average velocity during that time period?

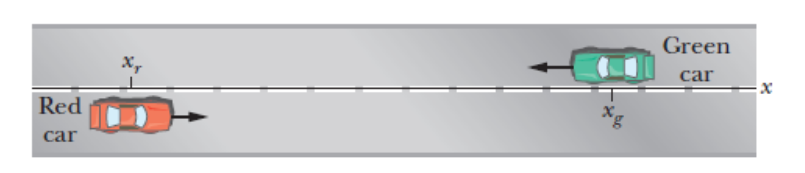

In figure, a red car and a green car, identical except for the color, move toward each other in adjacent lanes and parallel to x axis. At time t=0, the red car is atxr=0and green car is at xg=220m. If the red car has constant velocity of 20 km/hr, the cars pass each other atx = 44.5 m, and if it has a constant velocity of40 km/hr, they pass each other atx = 76.6 m. What are (a) the initial velocity? (b) the constant acceleration of the green car?

A certain sprinter has a top speed of 11.0 m/s. If the sprinter starts from rest and accelerates at a constant rate, he is able to reach his top speed in a distance of 12.0 m. He is then able to maintain this top speed for the remainder of a 100 m race. (a) What is his time for the 100 m race? (b) In order to improve his time, the sprinter tries to decrease the distance required for him to reach his top speed. What must this distance be if he is to achieve a time of 10.0 s for the race?
