Chapter 2: Q1Q (page 31)

Figure 2-1 6 gives the velocity of a particle moving on an x axis. What

are (a) the initial and (b) the final directions of travel? (c) Does the particle stop momentarily? (d) Is the acceleration positive or negative? (e) Is it constant or varying?

Short Answer

Expert verified

(a) The initial direction of travel is negative

(b) The final direction of travel is positive

(c) The particle stops momentarily

(d) The acceleration is positive

(e) The acceleration is constant

Step by step solution

01

Given information

The graph is given in figure 2.16

02

To understand the concept

From the given graph it can be seen that the initial direction of travel is negative whereas the final direction is positive. When the particle velocity is zero that means the particle stops momentarily. Further, the given graph represents the straight line that is ascending in a positive direction.

03

(a) Initial direction of travel

The graph starts below the x axis which indicates that the initial direction is negative.

Thus, the initial direction of travel is negative.

04

(b) Final direction of travel

The graph ends above the x axis which indicates that the final direction is positive.

Thus, the final direction of travel is positive.

05

(c) Does the particle stop momentarily

From the graph, it is seen that the line crosses the x axis. At that point, the velocity of the particle is zero. When the velocity becomes zero at that moment that means the particle stops momentarily.

06

(d) Whether the acceleration is positive or negative

the given graph starts from negative velocity to positive velocity which indicates that the velocity is increasing and the slope of v versus t is positive. Thus, the acceleration is positive.

07

(e) Whether the acceleration is constant or not

As the graph is a straight line, the acceleration is constant.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

When startled, an armadillo will leap upward. Suppose it rises0.544 min first0.200 s, (a) what is its initial speed as it leaves the ground? (b)What is its speed at a height of0.544 m? (c) How much higher does it go?

You drive on Interstate 10 from San Antonio to Houston, half the time at 55km/hand other half at90km/h. What is your average speed (a) from San Antonio to Houston? (b) from Houston back to San Antonio? (c) for the entire trip? (d) What is your average velocity for the entire trip? (e) Sketch x vs tfor (a), assuming the motion is all in positive x direction. Indicate how the average velocity can be found on the sketch.

Question:An automobile travels on a straight road for 40 kmat 30 km/hr. It then continues in same direction for another40 kmat 60 km/hr.(a) What is the average velocity of car during the full 80 kmtrip? (Assume that it moves in positive x direction) (b) What is the average speed? (c) Graph x versus tand indicate how the average velocity is found on the graph.

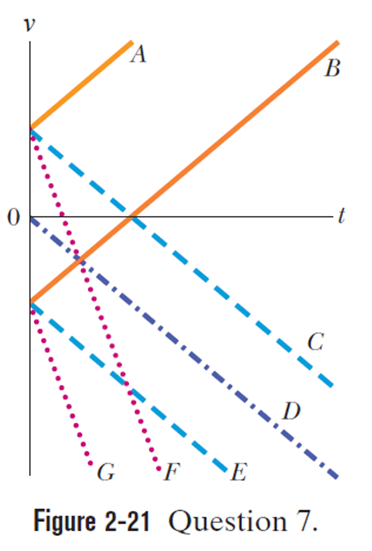

Hanging over the railing of a bridge, you drop an egg (no initial velocity) as you throw a second egg downward. Which curves in Fig 2-21 give the velocityfor- (a) the dropped egg and (b) the thrown egg? (Curves A and B are parallel, so are C, D and E, so are F and G)
