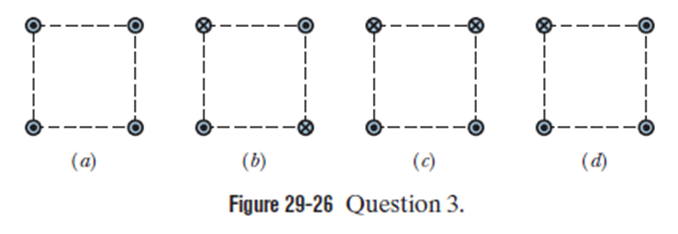

Figure 29-26 shows four arrangements in which long parallel wires carry equal currents directly into or out of the page at the corners of identical squares. Rank the arrangements according to the magnitude of the net magnetic field at the center of the square, greatest first.

Short Answer

Expert verified

The ranking of arrangements according to the magnitude of the net magnetic field at the center of the square is c>d>a=b.

Step by step solution

01

Step 1: Given

Figure showing four arrangements in which long parallel wires carry equal currents directly into or out of the page.

02

Determining the concept

Use the concept of magnetic field and current to determine the magnitude of the net magnetic field at the center of the square.

03

Determining the arrangements according to the magnitude of the net magnetic field at the center of the square, greatest first.

The magnetic field depends directly on the current and the net through the arrangement.

From the given figure it can be interpreted that,

a. In arrangement (a) since current directed into page and out of page are in oppositely directions, they get cancelled out, and hence, the net magnetic field is zero.

b. Similarly, in arrangement (b); the net magnetic field is zero.

c. In arrangement (c); the two currents directing into page and two out of page are on the same side, so they get added.

d. In arrangement (d), the two currents are oppositely directed and two are in the same direction that is out of the page.

Hence, the ranking of arrangements according to the magnitude of the net magnetic field at the center of the square is,c>d>a=b

Therefore, magnetic field depends on net current through the wire.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: Two long straight thin wires with current lie against an equally long plastic cylinder, at radius R=20.0cmfrom the cylinder鈥檚 central axis.

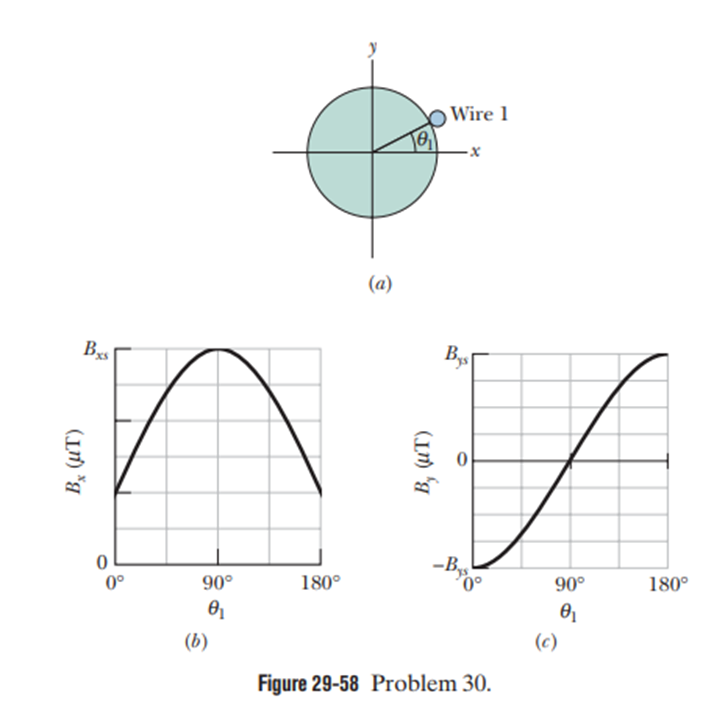

Figure 29-58ashows, in cross section, the cylinder and wire 1 but not wire 2. With wire 2 fixed in place, wire 1 is moved around the cylinder, from angle localid="1663154367897" 胃1=0掳to angle localid="1663154390159" 胃1=180掳, through the first and second quadrants of the xycoordinate system. The net magnetic field B鈫�at the center of the cylinder is measured as a function of 胃1. Figure 29-58b gives the x component Bxof that field as a function of 胃1(the vertical scale is set by Bxs=6.0渭T), and Fig. 29-58c gives the y component(the vertical scale is set by Bys=4.0渭T). (a) At what angle 胃2 is wire 2 located? What are the (b) size and (c) direction (into or out of the page) of the current in wire 1 and the (d) size and (e) direction of the current in wire 2?
